Rear Seat Entertainment System
>>
DTC B15D5: Rear Seat Entertainment System Disconnected [02/2014 - ]
>>

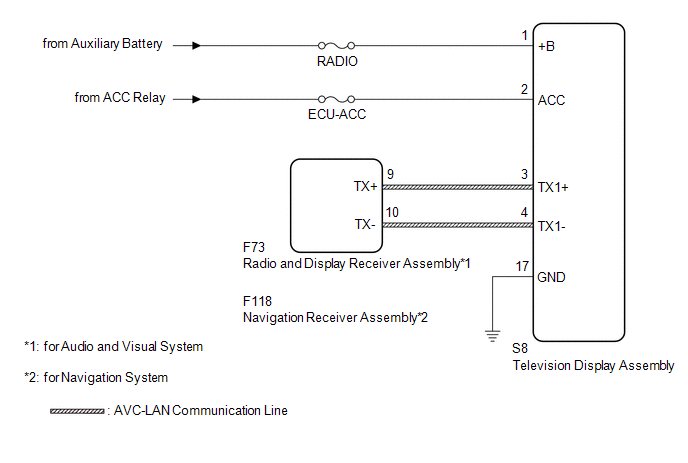

Wiring Diagram
DTC B15D5: Rear Seat Entertainment System Disconnected [02/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
