Parts Location [02/2014 - ]: Illustration

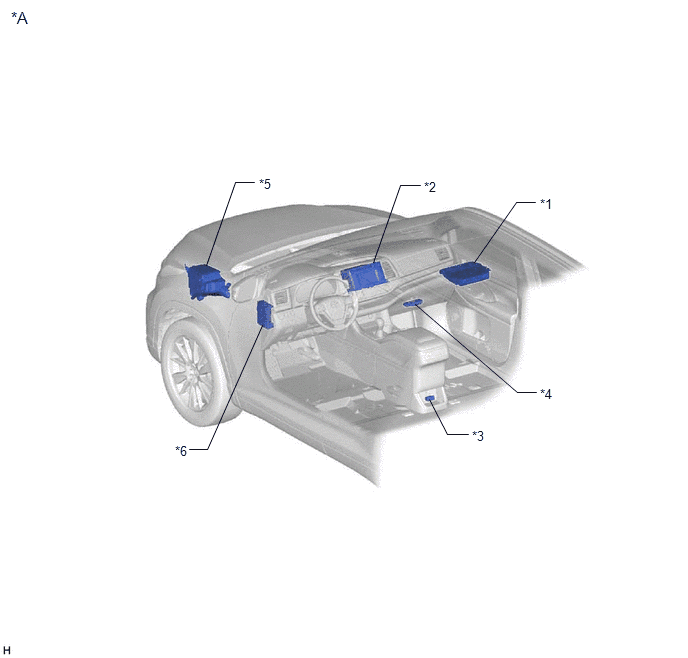

Fig 1: Rear Seat Entertainment System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Audio and Visual System	-	-
*1	TELEVISION DISPLAY ASSEMBLY	*2	RADIO AND DISPLAY RECEIVER ASSEMBLY
*3	VIDEO (VIDEO ADAPTER) TERMINAL	*4	REAR SWITCH AND VOLUME ASSEMBLY
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - RADIO FUSE	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE

Fig 1: Rear Seat Entertainment System Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Navigation System	-	-
*1	TELEVISION DISPLAY ASSEMBLY	*2	NAVIGATION RECEIVER ASSEMBLY
*3	VIDEO (VIDEO ADAPTER) TERMINAL	*4	REAR SWITCH AND VOLUME ASSEMBLY
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - RADIO FUSE	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE
