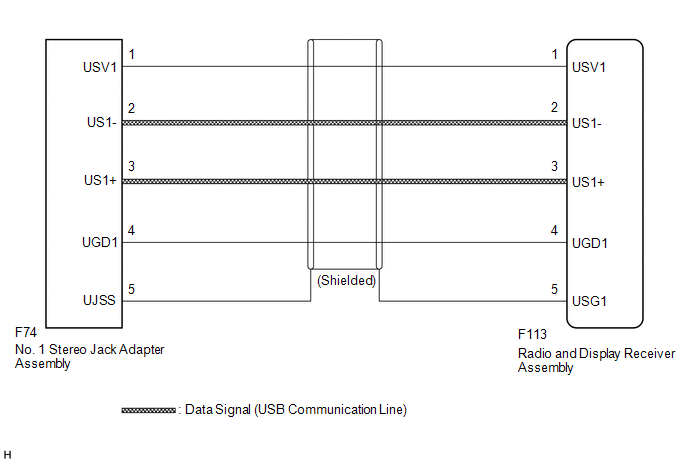

USB Audio System Recognition/Play Error [02/2014 - 11/2016]: Wiring Diagram

GTY424223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
