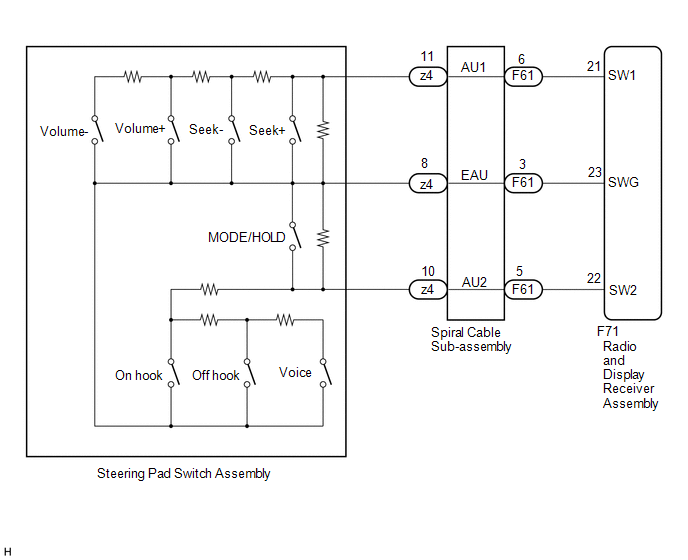

Steering Pad Switch Circuit [11/2016 - ]: Wiring Diagram

GTY697242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
