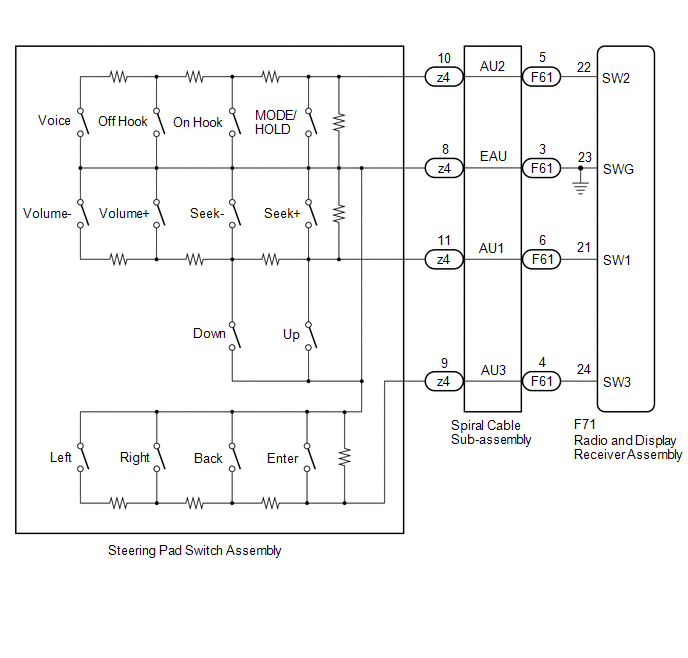

Steering Pad Switch Circuit [02/2014 - 11/2016]: Wiring Diagram

GTY721818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
