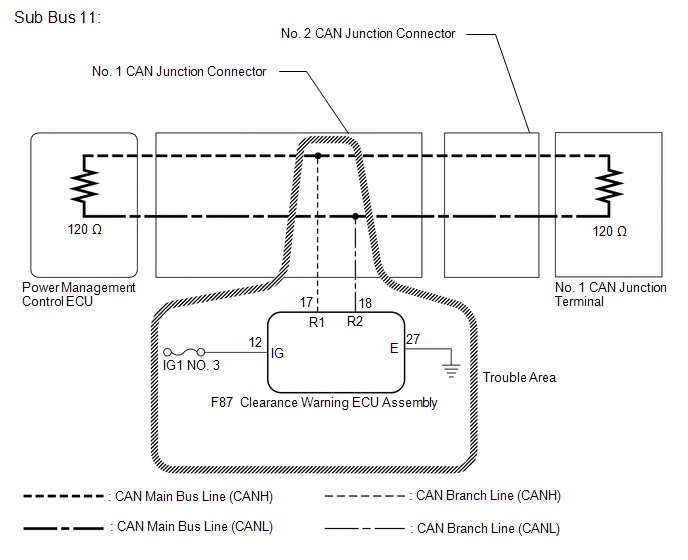

DTC U1110: Lost Communication with Clearance Sonar Module [02/2014 - 11/2016]: Wiring Diagram

GTY424169

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
