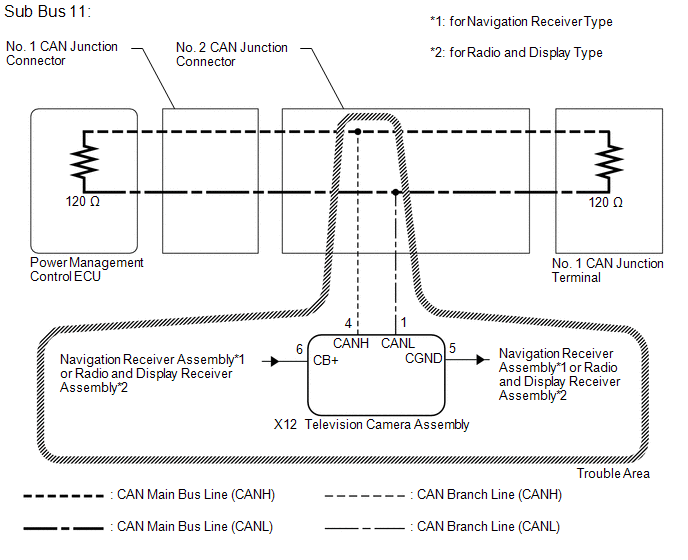

DTC U0265: Lost Communication with Parking Assist Monitor Module [02/2014 - 11/2016]: Wiring Diagram

GTY433377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
