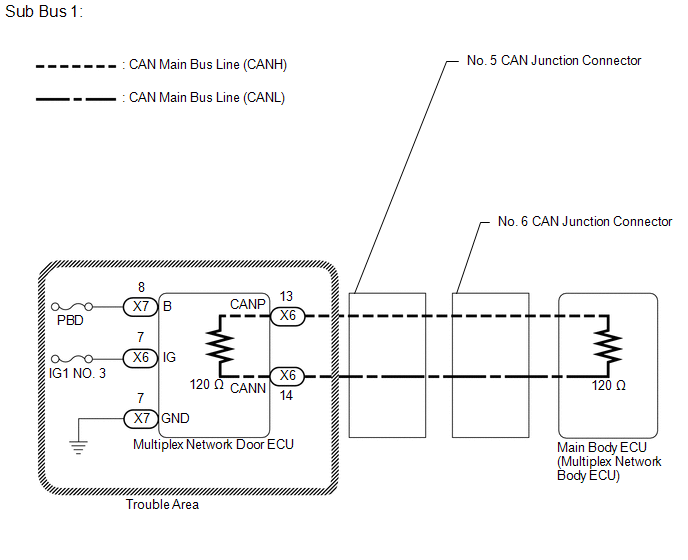

DTC U0230: Lost Communication with Rear Gate Module [02/2014 - ]: Wiring Diagram

GTY425678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
