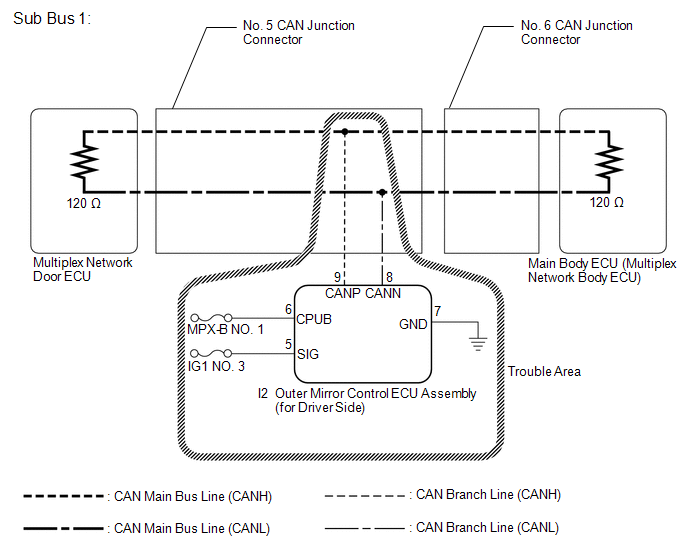

DTC U0200: Lost Communication with "Door Control Module B" [02/2014 - ]: Wiring Diagram

GTY426447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
