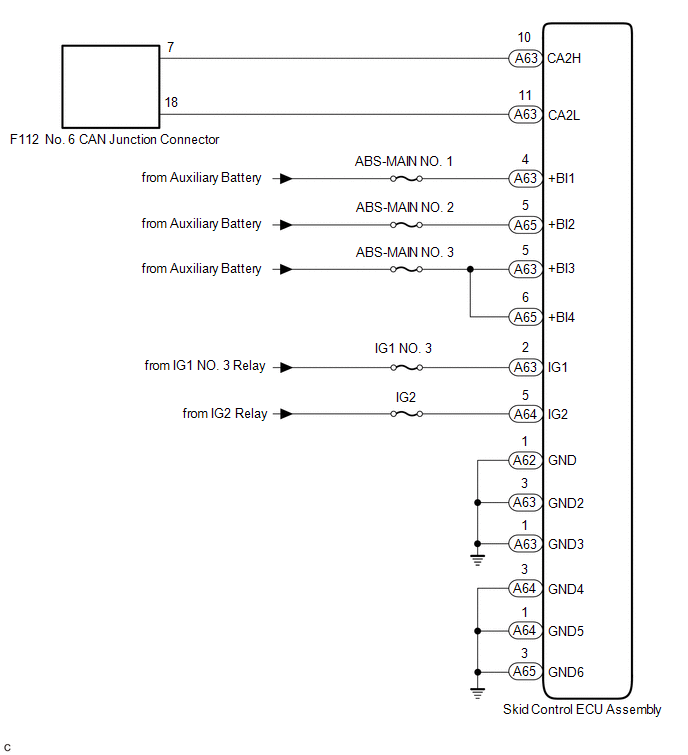

DTC U0129: Lost Communication with Brake System Control Module [11/2016 - ]: Wiring Diagram

GTY738180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
