Home >> Toyota >> 2016 >> Highlander Hybrid Limited >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Vehicle Proximity Notification System - Diagnostic Codes & Symptom Tests - (Hybrid) >> Vehicle Proximity Notification System >> Symptom Tests >> There is No Sound Made [11/2016 - ] >> Wiring Diagram

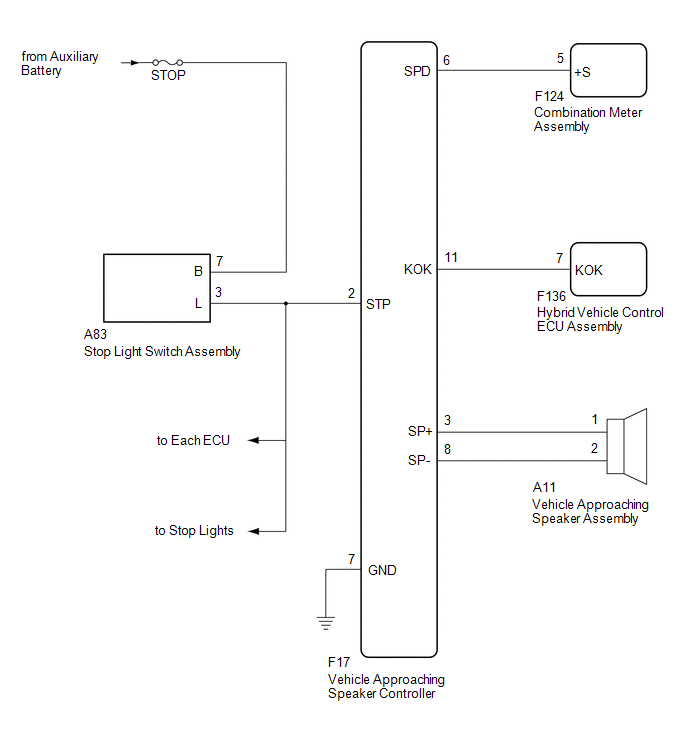

There is No Sound Made [11/2016 - ]: Wiring Diagram

GTY724885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
