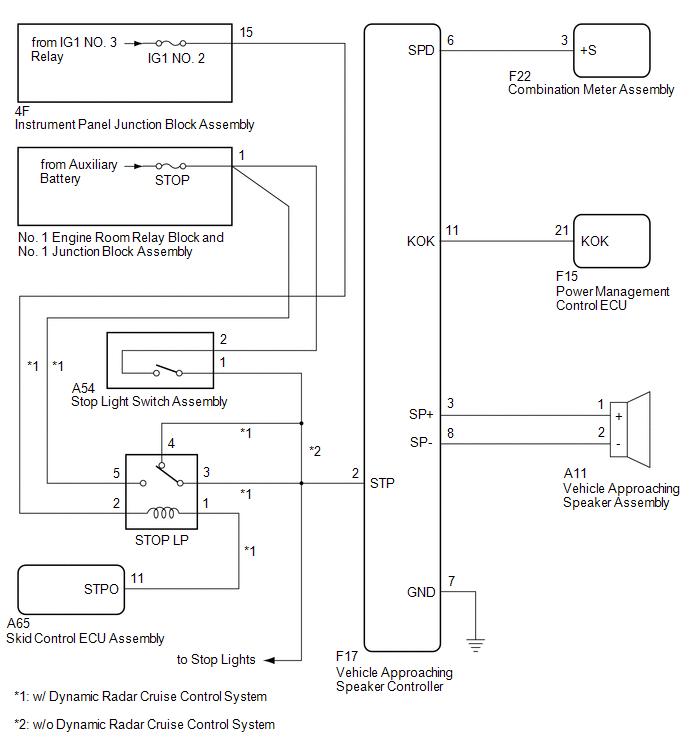

There is No Sound Made [02/2014 - 11/2016]: Wiring Diagram

GTY447861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
