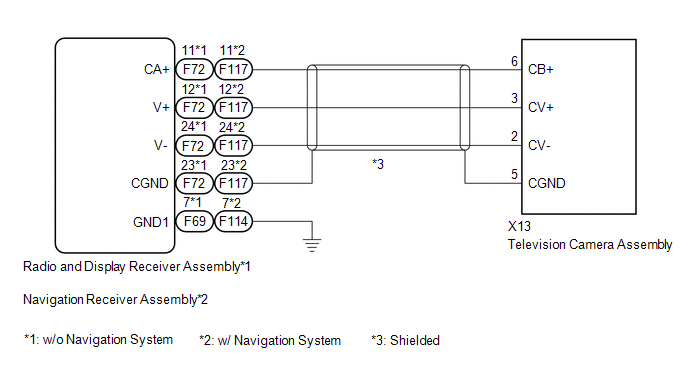

DTC C1622: Back Camera Disconnected [02/2014 - ]: Wiring Diagram

GTY440643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
