Parts Location [11/2016 - ]: Illustration

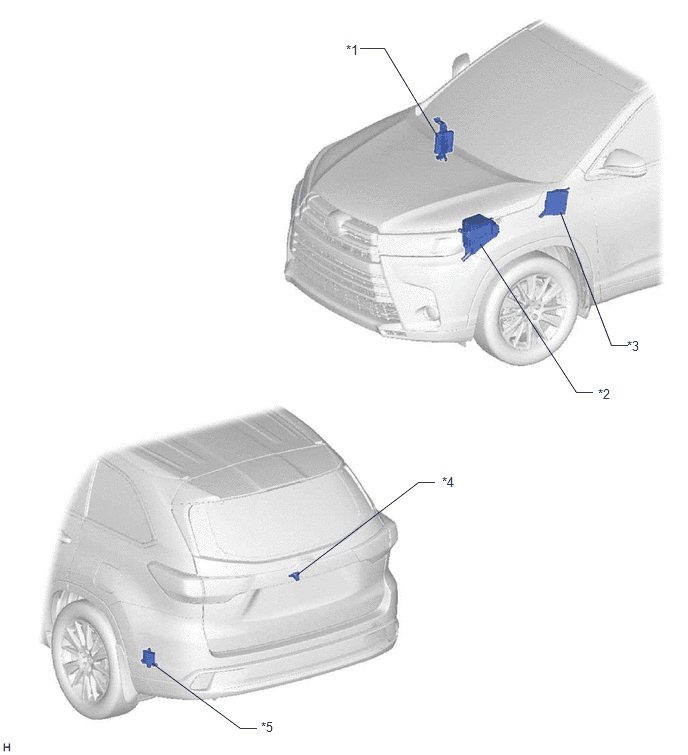

Fig 1: Parking Assist Monitor System Component Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SKID CONTROL ECU ASSEMBLY	*2	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - BACK UP LP RELAY - MPX-B NO. 1 FUSE
*3	HYBRID VEHICLE CONTROL ECU	*4	TELEVISION CAMERA ASSEMBLY
*5	BLIND SPOT MONITOR SENSOR LH	-	-

Fig 1: Parking Assist Monitor System Component Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	STEERING SENSOR
*3	NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type)	*4	RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)
*5	POWER STEERING ECU ASSEMBLY	*6	CLEARANCE WARNING ECU ASSEMBLY
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE	*8	DLC3
