Removal [11/2016 - ]: Procedure

Refer to PRECAUTION [11/2016 - ]

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

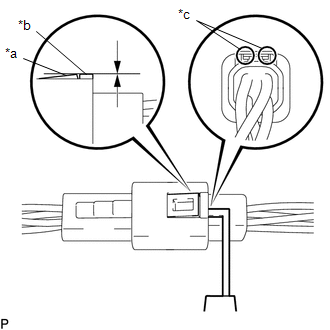

1. Insert a 0.9 mm (0.0354 in.) spark plug gap gauge or similar tool into the connector as shown in the illustration, lift the claw and disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Claw
   *b	Protrusion
   *c	Insert Position

   NOTE:

   • Insert the spark plug gap gauge to the point that the claw becomes the same height as the protrusion of the connector housing. If the spark plug gap gauge is inserted too far, or if the claw is lifted directly using a screwdriver, the claw may be damaged.
   • If the claw on the connector is damaged, replace the outer rear view mirror assembly.

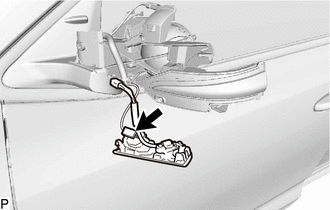

2. Disconnect the connector to remove the side television camera assembly with cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

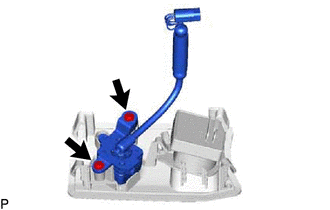

1. Remove the 2 screws and side television camera assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
