Components [11/2016 - ]: Illustration

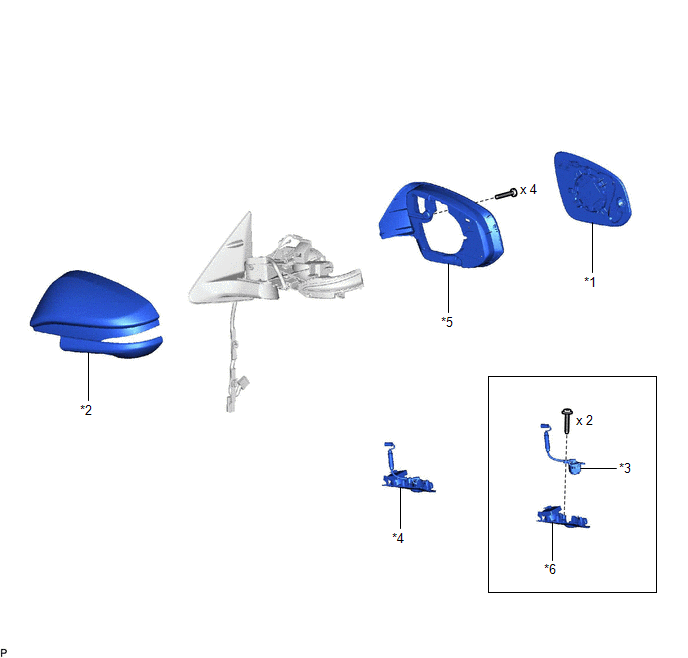

Fig 1: Television Camera (For Side) Component Replacements
GTY727868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 OUTER MIRROR *2 OUTER MIRROR COVER WITH LOWER HOUSING
*3 SIDE TELEVISION CAMERA ASSEMBLY *4 SIDE TELEVISION CAMERA ASSEMBLY WITH COVER
*5 VISOR *6 COVER
