Components [02/2014 - ]: Illustration

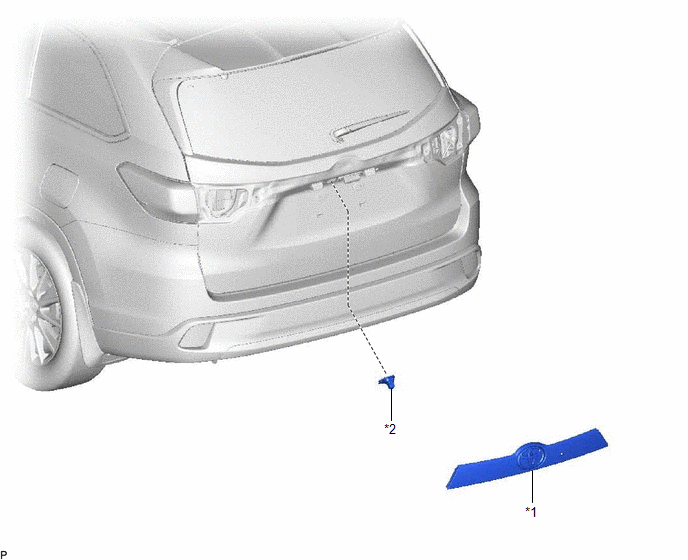

Fig 1: Television Camera (For Rear) Replacement Components
GTY437305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY *2 TELEVISION CAMERA ASSEMBLY
