Components [02/2014 - ]: Illustration

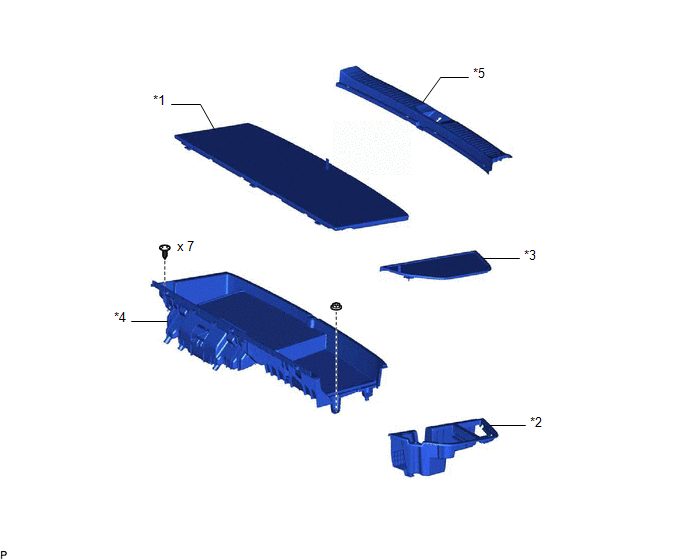

Fig 1: Rear Cross Traffic Alert Buzzer Replacement Components (1 Of 2)
GTY435901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DECK BOARD ASSEMBLY *2 DECK SIDE TRIM BOX LH
*3 NO. 3 DECK BOARD SUB-ASSEMBLY *4 REAR DECK FLOOR BOX
*5 REAR FLOOR FINISH PLATE - -

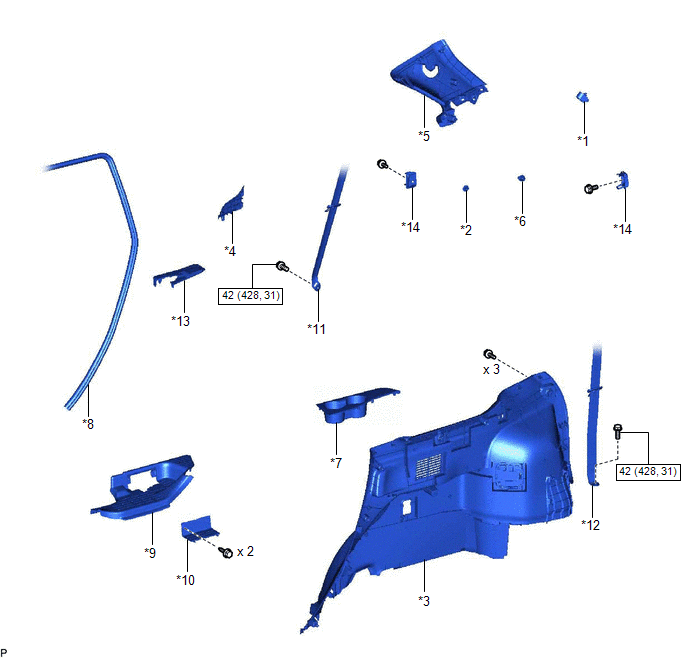

Fig 1: Rear Cross Traffic Alert Buzzer Replacement Components With Torque Specifications (2 Of 2)
GTY441649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BLIND SPOT MONITOR BUZZER *2 DECK TRIM POCKET COVER
*3 DECK TRIM SIDE PANEL ASSEMBLY LH *4 FRONT DECK SIDE TRIM COVER LH
*5 INNER ROOF SIDE GARNISH ASSEMBLY LH *6 NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
*7 NO. 2 DECK SIDE TRIM COVER *8 REAR DOOR OPENING TRIM WEATHERSTRIP LH
*9 REAR DOOR SCUFF PANEL LH *10 REAR DOOR SCUFF PLATE LH
*11 REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH *12 REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
*13 REAR OUTER SEAT TRACK BRACKET COVER LH *14 ROPE HOOK
N*m (kgf*cm, ft.*lbf): Specified torque - -
