Removal [11/2016 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to REMOVAL [02/2014 - ]

  2. REMOVE PARKING ASSIST ECU COVER

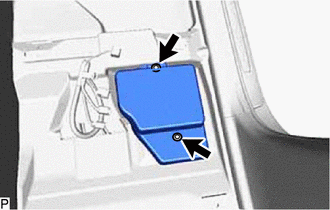

    1. Remove the 2 clips and parking assist ECU cover.
      GTY736153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PARKING ASSIST ECU

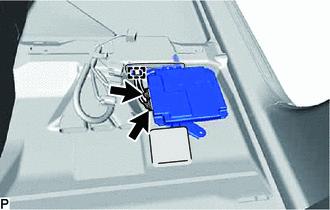

    1. Disconnect each connector.
      GTY710405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

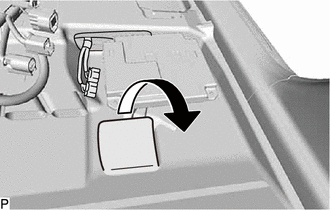

    2. Disengage the clamp.
    3. Turn back the front floor carpet assembly as shown in the illustration.
      GTY710406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

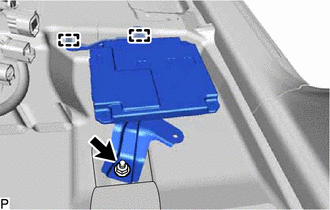

    4. Remove the nut.
      GTY710411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 guides and remove the parking assist ECU.
