Components [02/2014 - ]: Illustration

Fig 1: Clearance Warning ECU Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DECK BOARD ASSEMBLY

NO. 3 DECK BOARD SUB-ASSEMBLY

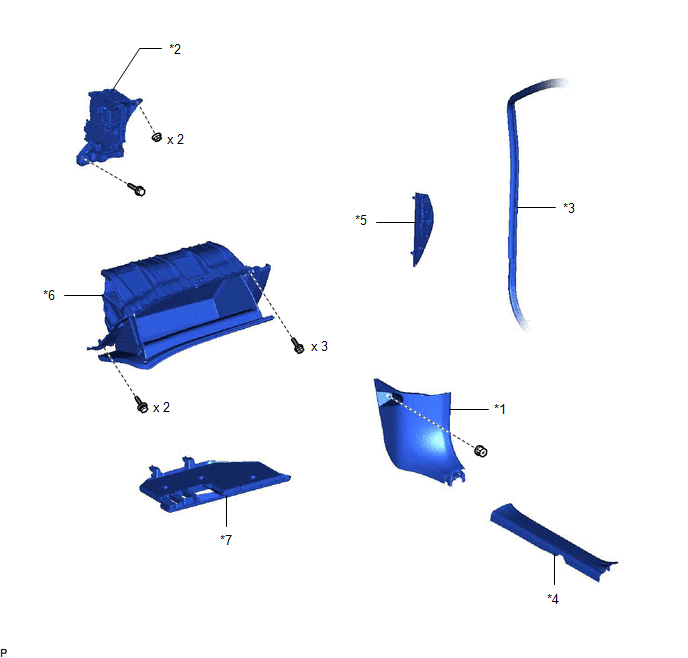

Fig 1: Clearance Warning ECU Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM SUB-ASSEMBLY RH	*2	ECU INTEGRATION BOX RH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	*4	FRONT DOOR SCUFF PLATE RH
*5	INSTRUMENT PANEL FINISH PANEL END RH	*6	LOWER INSTRUMENT PANEL SUB-ASSEMBLY
*7	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-

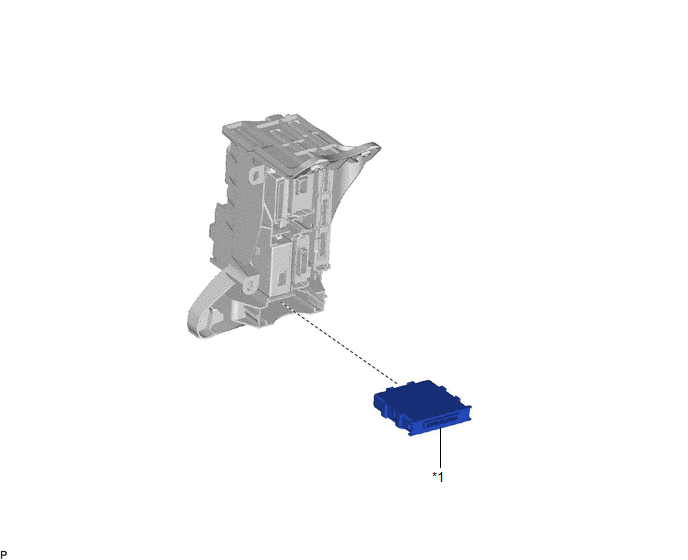

Fig 1: Clearance Warning ECU Replacement Components (3 Of 3)

CLEARANCE WARNING ECU ASSEMBLY
