Removal [08/2014 - ]: Procedure

REMOVE MANUAL TRANSAXLE ASSEMBLY (When Using the Engine Support Bridge)
Refer to REMOVAL [08/2014 - 08/2016] Refer to REMOVAL [08/2016 - ]
REMOVE MANUAL TRANSAXLE ASSEMBLY (When Not Using the Engine Support Bridge)
Refer to REMOVAL [08/2013 - 08/2016] Refer to REMOVAL [08/2016 - ]

REMOVE CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE

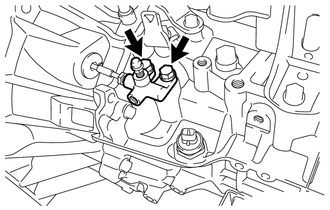

Remove the 2 bolts and clutch release cylinder to flexible hose tube from the manual transaxle assembly.

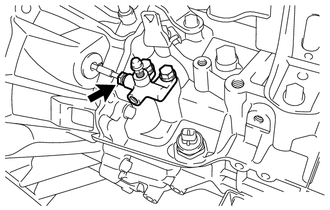

Using a 10 mm union nut wrench, separate the clutch release cylinder to flexible hose tube from the clutch release bleeder sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CLUTCH RELEASE BLEEDER SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

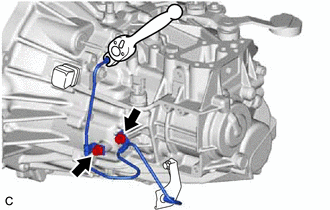

Using a 10 mm union nut wrench, separate the clutch release bleeder sub-assembly from the bleeder clutch release tube.

Remove the 2 bolts and clutch release bleeder sub-assembly from the manual transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CLUTCH RELEASE WITH BEARING CYLINDER ASSEMBLY

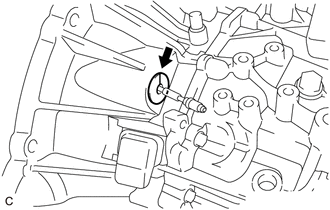

Remove the clutch tube boot from the manual transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

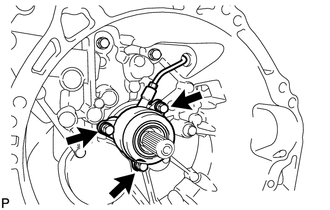

Remove the 3 bolts and clutch release with bearing cylinder assembly together with the bleeder clutch release tube from the manual transaxle assembly.

REMOVE BLEEDER CLUTCH RELEASE TUBE

Using a 10 mm union nut wrench, remove the bleeder clutch release tube from the clutch release with bearing cylinder assembly.

REMOVE CLUTCH COVER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

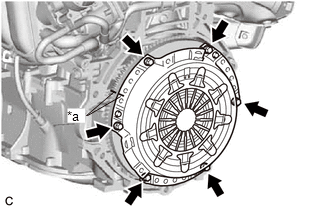

*a Matchmark
1. Put matchmarks on the clutch cover assembly and the flywheel sub-assembly.
2. Loosen each bolt 180° at a time until the spring tension is released.
3. Remove the 6 bolts and pull off the clutch cover assembly.
  NOTE:
  Do not drop the clutch disc assembly.
REMOVE CLUTCH DISC ASSEMBLY
NOTE:
Keep the lined part of the clutch disc assembly, the pressure plate, and the surface of the flywheel sub-assembly away from oil and foreign matter.
