Removal [08/2013 - ]: Procedure

  1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to REMOVAL [08/2013 - 04/2014] Refer to REMOVAL [04/2014 - 08/2014] Refer to REMOVAL [08/2014 - 08/2016] Refer to REMOVAL [08/2016 - 08/2017] Refer to REMOVAL [08/2017 - ]

  2. REMOVE POWER STEERING ECU ASSEMBLY

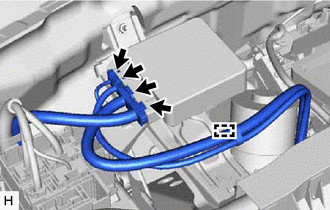

    1. Disconnect the 4 connectors from the power steering ECU assembly.
      GTY431159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp from the power steering ECU assembly.

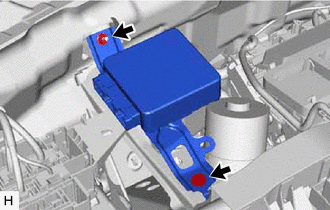

    3. Remove the bolt, nut and power steering ECU assembly.
      GTY431160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
