Parts Location [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

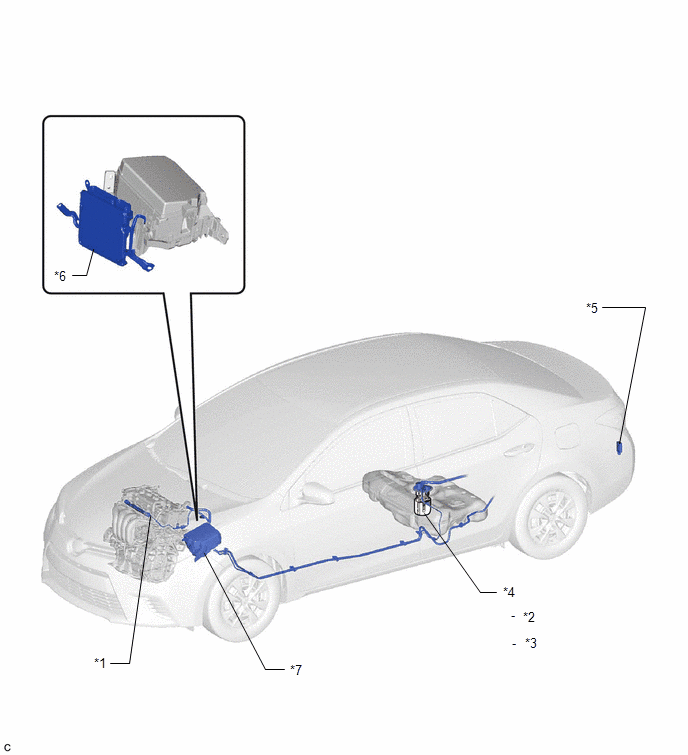

| *1 |
FUEL INJECTOR ASSEMBLY |
*2 |
FUEL PUMP |
| *3 |
FUEL SENDER GAUGE ASSEMBLY |
*4 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *5 |
FUEL PUMP CONTROL ECU ASSEMBLY |
*6 |
ECM |
| *7 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- EFI-MAIN RELAY
- IGT/INJ RELAY
- EFI-MAIN FUSE
- EFI NO. 1 FUSE
- INJ FUSE |
- |
- |
