Parts Location [08/2016 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

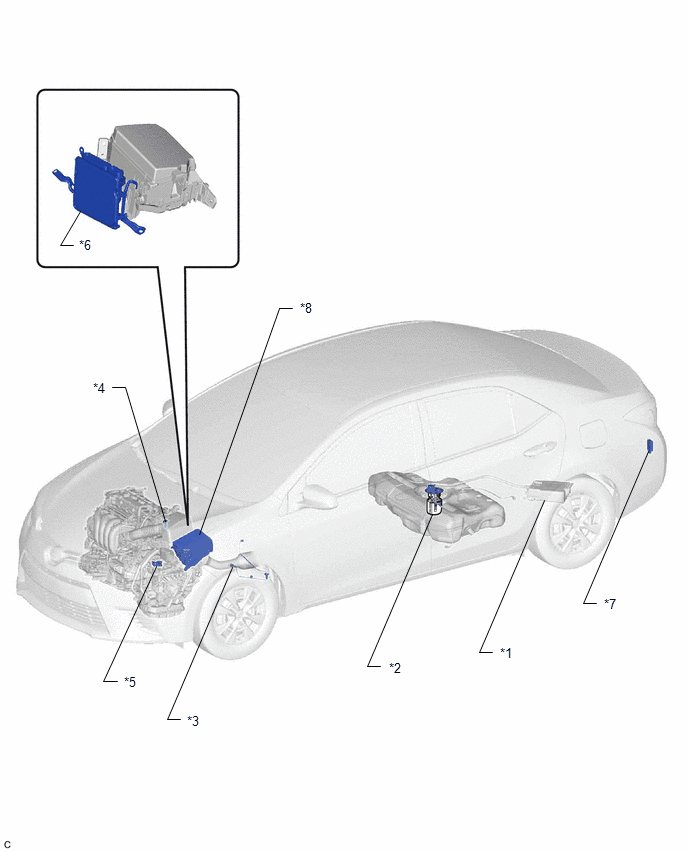

| *1 | CANISTER PUMP MODULE | *2 | FUEL PUMP |
| *3 | HEATED OXYGEN SENSOR | *4 | MASS AIR FLOW METER SUB-ASSEMBLY |
| *5 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *6 | ECM |
| *7 | FUEL PUMP CONTROL ECU ASSEMBLY | *8 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY |

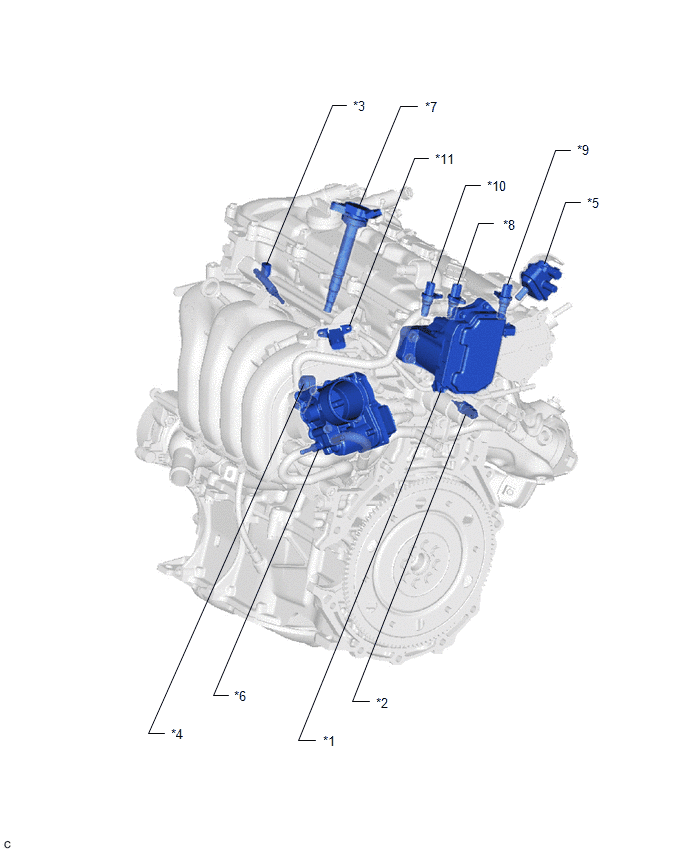

| *1 | CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY | *2 | ENGINE COOLANT TEMPERATURE SENSOR |
| *3 | FUEL INJECTOR ASSEMBLY | *4 | KNOCK CONTROL SENSOR |
| *5 | PURGE VSV | *6 | THROTTLE BODY ASSEMBLY |
| *7 | IGNITION COIL ASSEMBLY | *8 | CAMSHAFT POSITION SENSOR (NO. 1 CRANK POSITION SENSOR) (for Intake Camshaft) |
| *9 | CAMSHAFT POSITION SENSOR (NO. 1 CRANK POSITION SENSOR) (for Exhaust Camshaft) | *10 | VALVEMATIC SHAFT SENSOR (NO. 1 CRANK POSITION SENSOR) |
| *11 | MANIFOLD ABSOLUTE PRESSURE SENSOR | - | - |

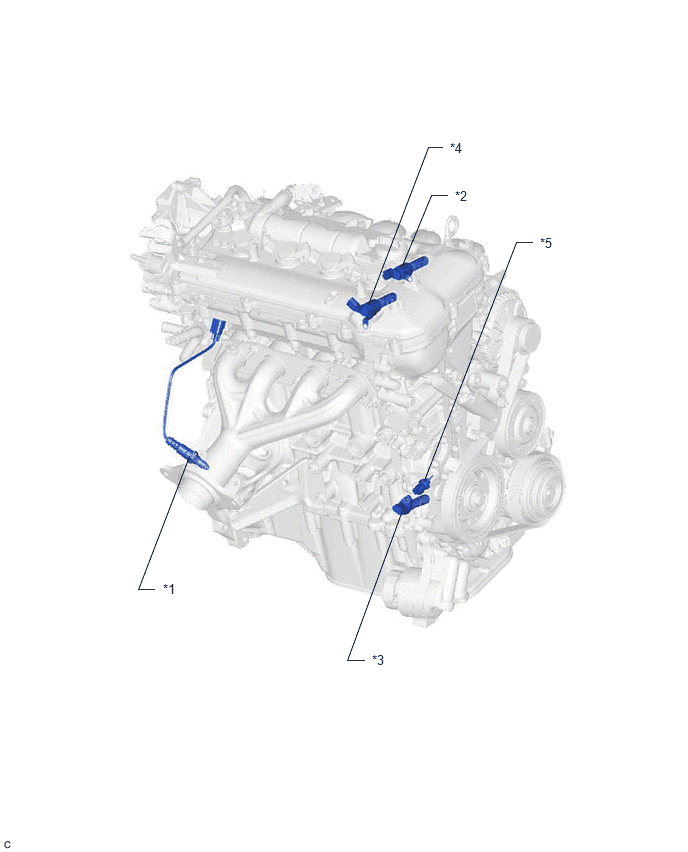

| *1 | AIR FUEL RATIO SENSOR | *2 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Camshaft) |
| *3 | CRANKSHAFT POSITION SENSOR | *4 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Camshaft) |
| *5 | ENGINE OIL TEMPERATURE SENSOR | - | - |
| *A | for CVT Models | - | - |

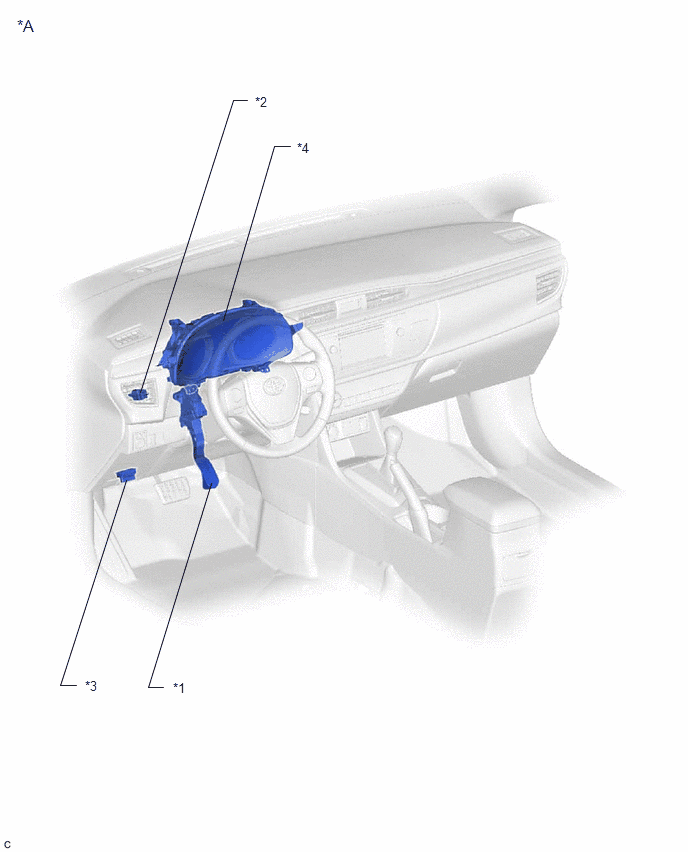

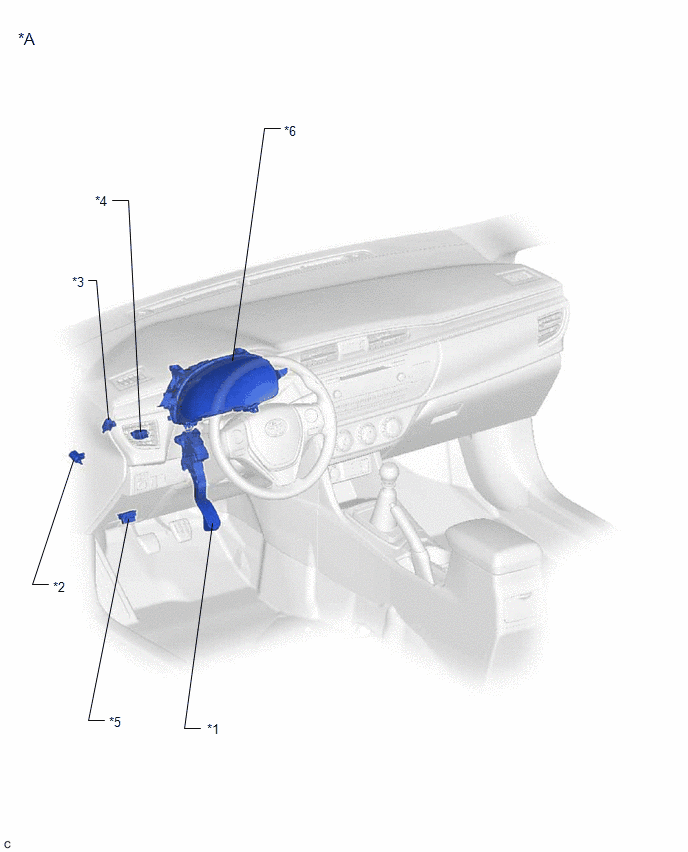

| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | COMBINATION METER ASSEMBLY |
