Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

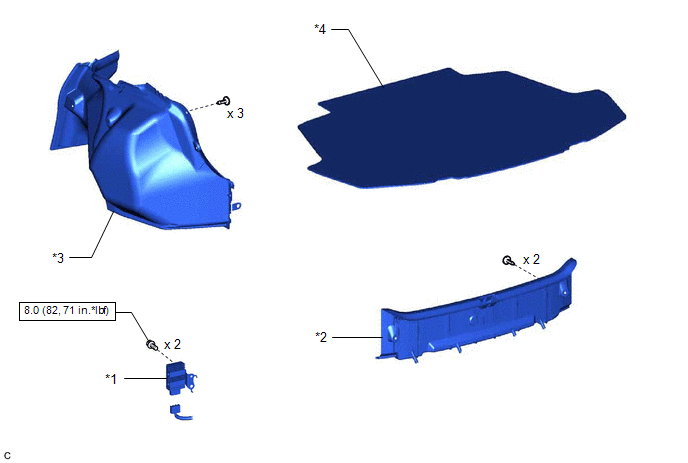

Fig 1: Fuel Pump ECU Replacement Components With Torque Specifications
GTY424306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL PUMP CONTROL ECU ASSEMBLY *2 REAR FLOOR FINISH PLATE
*3 SPARE WHEEL COVER *4 LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH
N*m (kgf*cm, ft.*lbf): Specified torque - -
