Disassembly [08/2013 - 08/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT SOLENOID VALVE S1
    1. Remove the bolt and shift solenoid valve S1 from the transmission valve body assembly.
      GTY447969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT SOLENOID VALVE S2
    1. Remove the bolt and shift solenoid valve S2 from the transmission valve body assembly.
      GTY455631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT SOLENOID VALVE SLU
    1. Remove the bolt, No. 2 solenoid lock plate and shift solenoid valve SLU from the transmission valve body assembly.

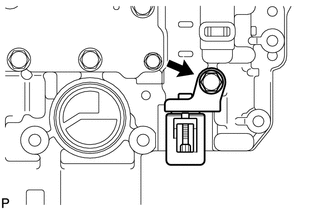

      GTY453858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 SOLENOID LOCK PLATE
    1. Remove the 2 bolts, No. 3 solenoid lock plate and shift solenoid valve ST from the transmission valve body assembly.
      GTY436621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Solenoid Lock Plate
      *2 Shift Solenoid Valve ST
      *3 Shift Solenoid Valve SLT
      *4 No. 1 Solenoid Lock Plate
    2. Remove the No. 1 solenoid lock plate and shift solenoid valve SLT from the transmission valve body assembly.
