Removal [08/2013 - 08/2016]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE TRANSMISSION VALVE BODY ASSEMBLY
Refer to REMOVAL [08/2013 - 08/2016]
- REMOVE TRANSMISSION WIRE

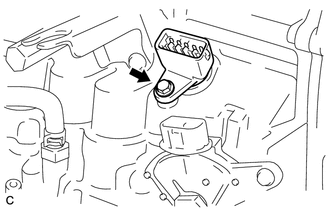

- Remove the bolt and transmission wire from the transaxle case.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using a screwdriver, remove the O-ring from the transmission wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Be careful not to damage the transmission wire.
HINT:
Tape the screwdriver tip before use.
