Components [08/2013 - 08/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

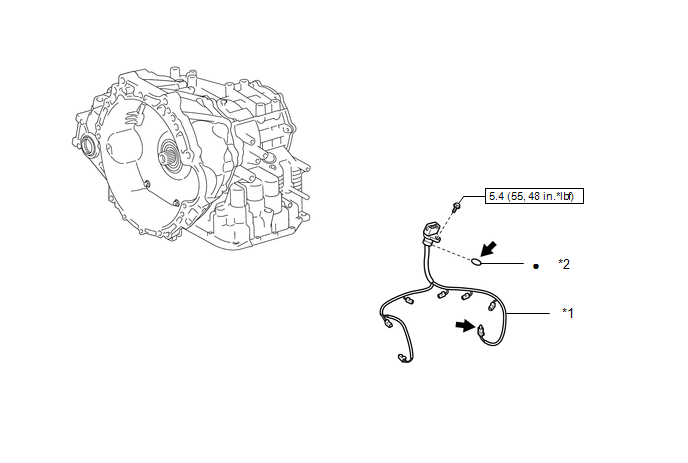

Fig 1: Transmission Wire Components With Torque Specifications
GTY445714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION WIRE *2 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque ATF WS
• Non-reusable part - -
