Removal [08/2013 - 08/2016]: Procedure

Refer to REMOVAL [08/2013 - 08/2016]

1. Move the shift lever to N.

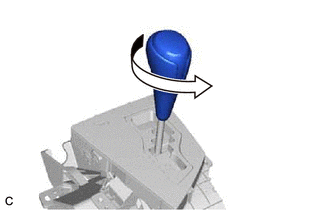

2. Turn the shift lever knob sub-assembly counterclockwise to remove the shift lever knob sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Separate the end of the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

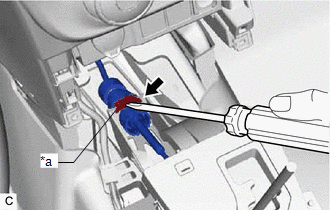

2. Using a screwdriver, pull out the stopper of the transmission control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   NOTE:

   Do not remove the stopper. If it is removed, reinstall it to its original position.

3. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, separate the transmission control cable assembly from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper
   *b	Nut

   NOTE:

   Do not rotate the nut excessively as the interior spring may come off and the transmission control cable assembly will not be reusable.

1. Disconnect the transmission control switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Transmission Control Switch Connector
   *b	Shift Lock Control ECU Connector

2. Disconnect the shift lock control ECU connector.
3. Disengage the 4 clamps and separate the wire harness from the transmission floor shift assembly.

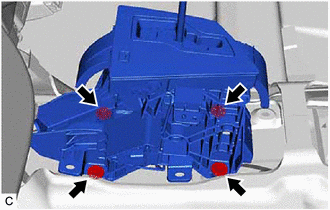

4. Remove the 4 bolts and transmission floor shift assembly from the body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

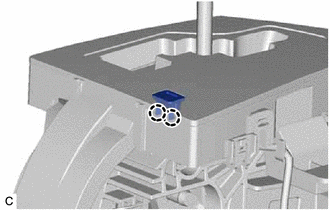

1. Disengage the 2 claws to remove the shift lock release button cover from the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
