Components [08/2013 - 08/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Park/Neutral Position Switch Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE UNDER COVER LH	-	-

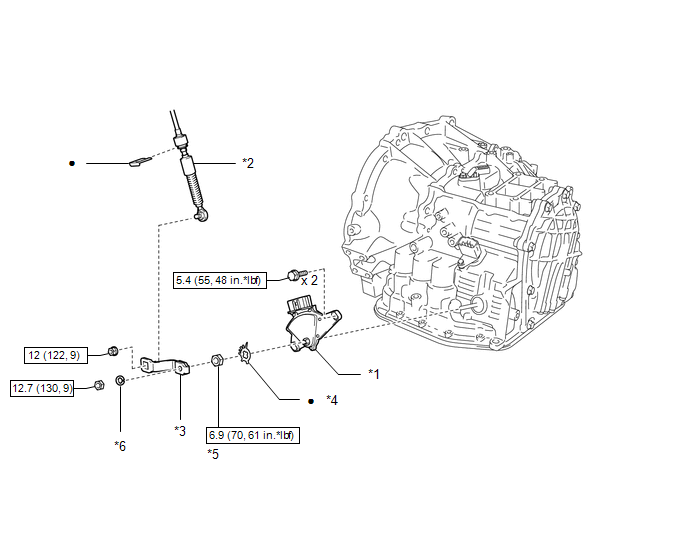

Fig 1: Park/Neutral Position Switch Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*2	TRANSMISSION CONTROL CABLE ASSEMBLY
*3	CONTROL SHAFT LEVER	*4	LOCK PLATE
*5	LOCK NUT	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
