Adjustment [08/2013 - 08/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Apply the parking brake.

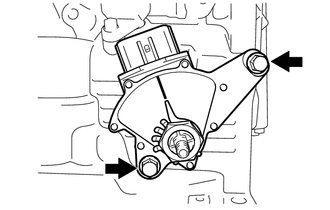

      GTY448962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to N.
    3. Loosen the 2 bolts of the park/neutral position switch assembly.
    4. Align the indicator with the neutral basic line.

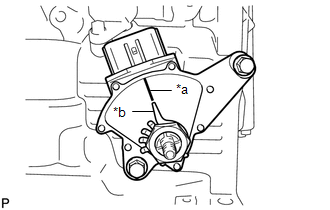

      GTY443305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Indicator
    5. Hold the park/neutral position switch assembly in position and tighten the 2 bolts.
      GTY448962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    6. After the adjustment, perform the park/neutral position switch assembly operation check.

      See step  1
