Reassembly [08/2013 - 08/2016]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL CLUTCH DRUM OIL SEAL RING
- Coat 2 new clutch drum oil seal rings with ATF and install them to the stator shaft assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL FRONT OIL PUMP OIL SEAL
- Using SST and a hammer, install a new front oil pump oil seal to the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- SST: 09950-60010
- 09951-00550
- SST: 09950-70010
- 09951-07100
Standard Depth
-0.2 to 0.2 mm (-0.00787 to 0.00787 in.)

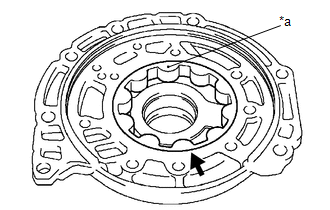

- INSTALL FRONT OIL PUMP DRIVEN GEAR
- Coat the front oil pump driven gear with ATF and install it to the front oil pump body with the marked side facing upward.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

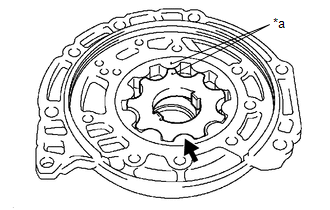

- INSTALL FRONT OIL PUMP DRIVE GEAR
- Coat the front oil pump drive gear with ATF and install it to the front oil pump body with the marked side facing upward.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL STATOR SHAFT ASSEMBLY
- Using a T30 "TORX" socket wrench, install the stator shaft assembly with the 10 "TORX" screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
- INSPECT FRONT OIL PUMP ASSEMBLY
See step 4
- INSTALL FRONT OIL PUMP BODY O-RING
- Coat a new front oil pump body O-ring with ATF and install it to the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
