Disassembly [08/2013 - 08/2016]: Procedure
WARNING: This page is about a different variant/trim than selected.

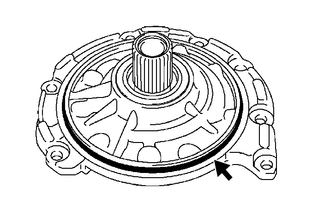

- REMOVE FRONT OIL PUMP BODY O-RING
- Remove the front oil pump body O-ring from the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSPECT FRONT OIL PUMP ASSEMBLY
See step 4

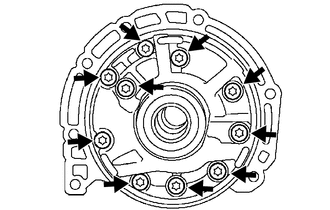

- REMOVE STATOR SHAFT ASSEMBLY
- Using a T30 "TORX" socket wrench, remove the 10 "TORX" screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

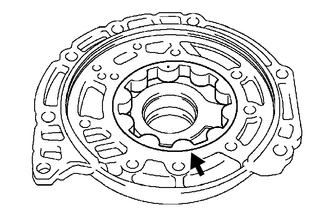

- REMOVE FRONT OIL PUMP DRIVE GEAR
- Remove the front oil pump drive gear from the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

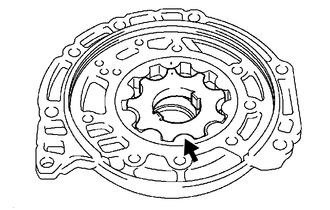

- REMOVE FRONT OIL PUMP DRIVEN GEAR
- Remove the front oil pump driven gear from the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

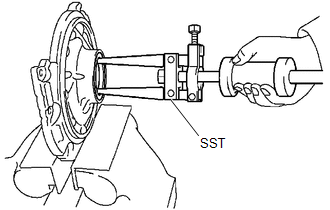

- REMOVE FRONT OIL PUMP OIL SEAL
- Using SST, remove the front oil pump oil seal from the front oil pump body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE CLUTCH DRUM OIL SEAL RING
- Using a screwdriver, remove the 2 clutch drum oil seal rings from the stator shaft assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Be careful not to damage the stator shaft assembly.
HINT:
Tape the screwdriver tip before use.
