Replacement [08/2013 - 08/2016]: Procedure

See step  2

Refer to REMOVAL [08/2013 - 08/2016]

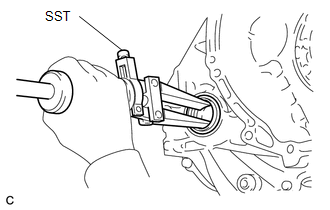

1. Using SST, remove the front drive shaft oil seal RH from the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010

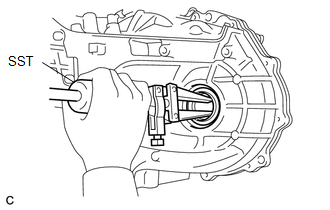

1. Using SST, remove the front drive shaft oil seal LH from the transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010

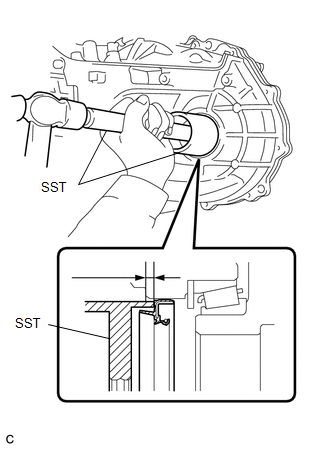

1. Using SST and a hammer, install a new front drive shaft oil seal RH to the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09387-00010
   • SST: 09950-70010
     1. 09951-07200

   Standard Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   Do not damage the front drive shaft oil seal RH lip.

2. Coat the lip of the front drive shaft oil seal RH with MP grease.

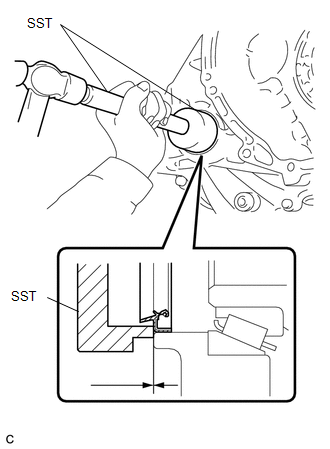

1. Using SST and a hammer, install a new front drive shaft oil seal LH to the transaxle case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09726-27012
     1. 09726-02041
   • SST: 09950-70010
     1. 09951-07200

   Standard Depth

   2.2 to 3.2 mm (0.0866 to 0.126 in.)

   NOTE:

   Do not damage the front drive shaft oil seal LH lip.

2. Coat the lip of the front drive shaft oil seal LH with MP grease.

Refer to INSTALLATION [08/2013 - 04/2014] Refer to INSTALLATION [04/2014 - 08/2016]

See step  8

See step  1
