Components [08/2013 - 08/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

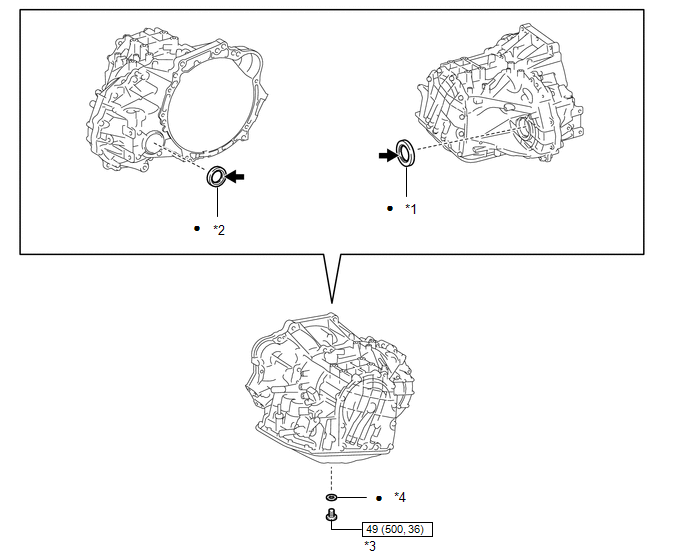

Fig 1: Differential Oil Seal Components With Torque Specifications
GTY454968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DRIVE SHAFT OIL SEAL LH *2 FRONT DRIVE SHAFT OIL SEAL RH
*3 DRAIN PLUG *4 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque MP grease
• Non-reusable part - -
