Reassembly [08/2013 - 08/2016]: Procedure

1. Coat the 2 front differential side gears, 2 front differential side gear thrust washers, 2 front differential pinions and 2 front differential pinion thrust washers with ATF and install them to the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the front No. 1 differential pinion shaft with ATF and install it to the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  1

1. Using a 5 mm pin punch and a hammer, install the front differential pinion shaft straight pin to the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using a chisel and a hammer, stake the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

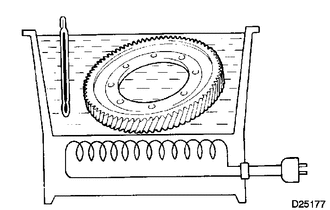

1. Using ATF and a heater, heat the front differential ring gear to 90 to 110°C (194 to 230°F).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not heat the front differential ring gear to more than 110°C (230°F).

2. Clean the contact surface of the front differential case.
3. Align the matchmarks, and install the front differential ring gear case quickly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   NOTE:

   Do not install the bolts while the front differential ring gear is hot.

4. Install 4 new front differential ring gear set bolt lock plates to the front differential case with the 8 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 88.2 N*m (899 kgf*cm, 65 ft.*lbf)

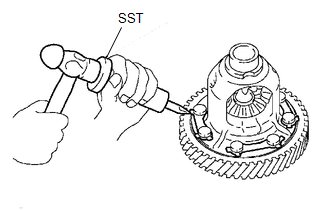

5. Using SST, stake the 4 front differential ring gear set bolt lock plates.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09930-00010
