Reassembly [08/2013 - 08/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.

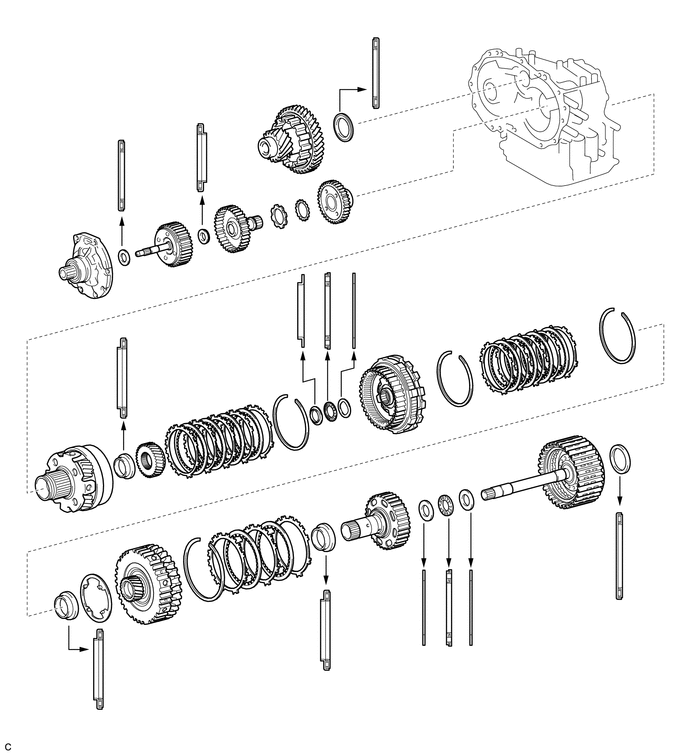

  1. BEARING POSITION
    1. Check each bearing position and installation direction.
      GTY607279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
    1. Using SST and a press, install a new front differential case rear tapered roller bearing (inner race) to the front differential case.
      GTY445678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09726-40010
      • SST: 09950-60020
        1. 09951-00790
    2. Using SST and a press, install a new front differential rear case shim and a new front differential case rear tapered roller bearing (outer race) to the transaxle case.
      • SST: 09950-60020
        1. 09951-00720
      • SST: 09950-60010
        1. 09951-00650
      • SST: 09950-70010
        1. 09951-07100
        2. 09951-07200
      GTY447211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
    1. Using SST and a press, install a new front differential case front tapered roller bearing (inner race) to the front differential case.
      GTY424305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00460
      • SST: 09950-70010
        1. 09951-07100

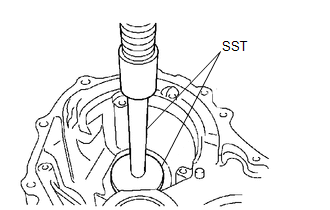

    2. Using SST and a press, install a new front differential case front tapered roller bearing (outer race) to the transaxle housing.
      • SST: 09950-70010
        1. 09951-07150
      • SST: 09950-60020
        1. 09951-00680
      GTY424670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT DIFFERENTIAL CASE TAPERED ROLLER BEARING PRELOAD
    1. Remove any remaining seal packing from the contact surfaces of the transaxle housing and transaxle case.
    2. Coat the differential gear assembly and bearings with ATF and install them to the transaxle case.

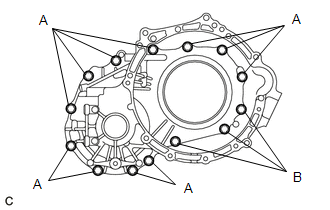

    3. Install the transaxle housing to the transaxle case with the 14 bolts.

      Bolt (A)

      Torque: 29.4 N*m (300 kgf*cm, 22 ft.*lbf)

      Bolt (B)

      Torque: 22.1 N*m (225 kgf*cm, 16 ft.*lbf)

      GTY430450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

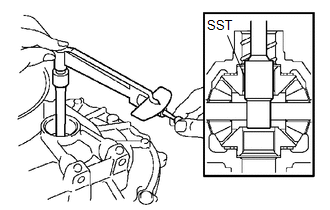

    4. Using SST and a torque wrench, measure the preload of the differential gear assembly.
      GTY437562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09564-32011

      Preload

      Bearing Standard
      New 0.98 to 1.57 N*m (10.0 to 16.0 kgf*cm, 8.7 to 13.9 in.*lbf)
      Used 0.49 to 0.78 N*m (5.0 to 8.0 kgf*cm, 4.3 to 6.9 in.*lbf)

      If the preload is out of specification, replace the front differential rear case shim with one of a different thickness. Use the table below to select a front differential rear case shim which will ensure that the preload is within the specification.

      Front Differential Rear Case Shim Thickness

      Mark Thickness (mm (in.)) Mark Thickness (mm (in.))
      01 1.90 (0.0748) 11 2.40 (0.0945)
      02 1.95 (0.0768) 12 2.45 (0.0965)
      03 2.00 (0.0787) 13 2.50 (0.0984)
      04 2.05 (0.0807) 14 2.55 (0.1004)
      05 2.10 (0.0827) 15 2.60 (0.1024)
      06 2.15 (0.0846) 16 2.65 (0.1043)
      07 2.20 (0.0866) 17 2.70 (0.1063)
      08 2.25 (0.0886) 18 2.75 (0.1083)
      09 2.30 (0.0906) 19 2.80 (0.1102)
      10 2.35 (0.0925) - -

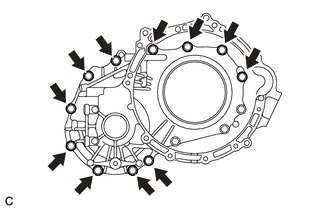

    5. Remove the 14 bolts from the transaxle housing.
      GTY448951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the transaxle housing from the transaxle case.
    7. Remove the differential gear assembly from the transaxle case.
  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

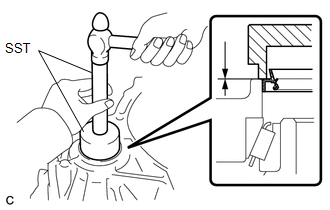

    1. Coat the lip of a new front drive shaft oil seal RH with MP grease.
      GTY435311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, install the front drive shaft oil seal RH to the transaxle housing.
      • SST: 09387-00010
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

  6. INSTALL FRONT DRIVE SHAFT OIL SEAL LH
    1. Coat the lip of a new front drive shaft oil seal LH with MP grease.
      GTY439240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

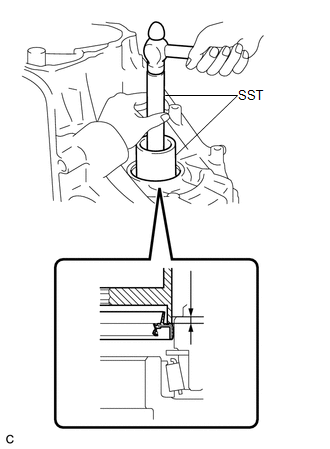

    2. Using SST and a hammer, install the front drive shaft oil seal LH to the transaxle case.
      • SST: 09726-27012
        1. 09726-02041
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      2.2 to 3.2 mm (0.0866 to 0.126 in.)

  7. INSTALL FRONT DRIVE PINION REAR CYLINDRICAL ROLLER BEARING
    1. Install the No. 1 transaxle case plate to the transaxle case.
      GTY425288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transaxle Case Plate
      *a Front Drive Pinion Rear Cylindrical Roller Bearing Side
      *b Transaxle Case Side
    2. Using SST and a hammer, install a new front drive pinion rear cylindrical roller bearing to the transaxle case.
      GTY447258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00610
      • SST: 09950-70010
        1. 09951-07150
  8. INSTALL FRONT DRIVE PINION FRONT CYLINDRICAL ROLLER BEARING
    1. Install the front drive pinion thrust needle roller bearing RH to the transaxle housing.
    2. Using SST and a press, install a new front drive pinion front cylindrical roller bearing to the transaxle housing.
      GTY443304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00650
      • SST: 09950-70010
        1. 09951-07150
  9. INSTALL DIFFERENTIAL GEAR LUBE APPLY TUBE
    1. Install the differential gear lube apply tube to the transaxle housing.
      GTY453531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL BEARING LOCK PLATE
    1. Install the bearing lock plate to the transaxle housing with the bolt.
      GTY447419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11.3 N*m (115 kgf*cm, 8 ft.*lbf)

  11. INSTALL COUNTER DRIVE GEAR HOLE SNAP RING
    1. Using a screwdriver, install a new counter drive gear hole snap ring to the transaxle case.
      GTY448440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL COUNTER DRIVE GEAR BEARING LH

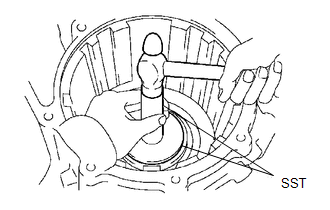

    1. Using SST and a hammer, install a new counter drive gear bearing LH (outer race) to the transaxle case.
      GTY446389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60020
        1. 09951-00890
      • SST: 09950-70010
        1. 09951-07150
    2. Install a new counter drive gear bearing LH (inner race) and a new angular ball to the transaxle case.
  13. INSTALL COUNTER DRIVE GEAR BEARING RH
    1. Using SST and a hammer, install a new counter drive gear bearing RH (outer race) to the transaxle case.
      GTY427613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60020
        1. 09951-00890
      • SST: 09950-70010
        1. 09951-07150
    2. Install a new counter drive gear bearing RH (inner race) and a new angular ball to the transaxle case.
  14. INSTALL MANUAL VALVE LEVER SHAFT OIL SEAL

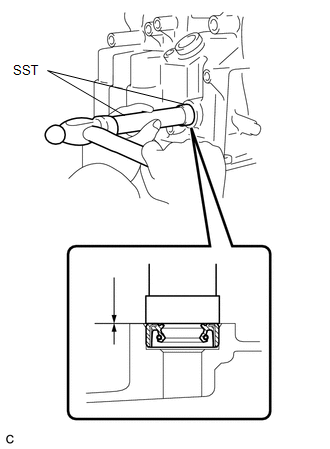

    1. Coat the lip of a new manual valve lever shaft oil seal with MP grease.
    2. Using SST and a hammer, install the manual valve lever shaft oil seal to the transaxle case.
      GTY442344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00220
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

  15. INSTALL DIFFERENTIAL DRIVE PINION
    1. Using SST and a press, install the differential drive pinion to the counter driven gear.
      GTY454910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00350
      • SST: 09950-70010
        1. 09951-07150
      NOTE:

      When replacing the counter driven gear, replace the counter drive gear in the transaxle case as well.

      Press in the differential drive pinion until it comes into contact with the counter driven gear.

  16. INSTALL DIFFERENTIAL DRIVE PINION PLUG
    1. Using SST and a plastic hammer, install a new differential drive pinion plug to the differential drive pinion.
      GTY432550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Differential Drive Pinion Plug
      • SST: 09221-25026
        1. 09221-00071

      Standard Clearance

      2.5 to 3.5 mm (0.0984 to 0.138 in.)

  17. INSTALL DIFFERENTIAL DRIVE PINION SUB-ASSEMBLY
    1. Coat the drive pinion thrust bearing LH with ATF and install it to the transaxle case.

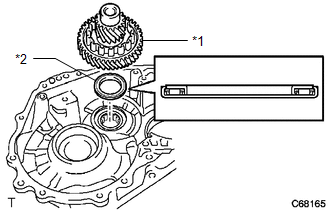

    2. Install the differential drive pinion sub-assembly to the transaxle case.
      GTY433969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Differential Drive Pinion Sub-assembly
      *2 Drive Pinion Thrust Bearing LH
  18. INSTALL PARKING LOCK PAWL
    1. Coat the parking lock pawl shaft with ATF.
    2. Install the parking lock pawl, parking lock pawl shaft torsion spring and parking lock pawl shaft to the transaxle case.
      GTY455634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Check that the parking lock pawl moves smoothly.

  19. INSTALL MANUAL VALVE LEVER SHAFT
    1. Install the manual valve lever shaft to the transaxle case.
      GTY448452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the manual valve lever shaft oil seal lip.

  20. INSTALL PARKING LOCK ROD SUB-ASSEMBLY
    1. Install the parking lock rod sub-assembly to the manual valve lever sub-assembly.
      GTY448450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL MANUAL VALVE LEVER SUB-ASSEMBLY
    1. Coat the manual valve lever sub-assembly with ATF.
    2. Install the manual valve lever sub-assembly and a new manual valve lever spacer to the manual valve lever shaft.
    3. Using a 3 mm pin punch and hammer, install the manual valve lever shaft slotted spring pin to the manual valve lever sub-assembly.
      GTY447958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the manual valve lever spacer and manual valve lever sub-assembly to align the small hole for locating the staking position mark on the manual valve lever sub-assembly.
      GTY569874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Manual Valve Lever Shaft Slotted Spring Pin
      *2 Manual Valve Lever Spacer
      *3 Manual Valve Lever Sub-assembly
      *4 Manual Valve Lever Shaft
      *a Punch
      *b Staking Position Mark
      *c Small Hole
    5. Using a punch, stake the manual valve lever spacer through the small hole.
    6. Check that the manual valve lever spacer does not turn.
  22. INSTALL MANUAL VALVE LEVER SHAFT RETAINER SPRING
    1. Install the manual valve lever shaft retainer spring to the manual valve lever shaft.
      GTY447957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL PARKING LOCK PAWL BRACKET
    1. Install the parking lock pawl bracket and cam guide sleeve to the transaxle case with the 3 bolts.
      GTY448449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20.1 N*m (205 kgf*cm, 15 ft.*lbf)

  24. INSTALL NO. 2 1ST AND REVERSE BRAKE PISTON O-RING
    1. Coat 2 new No. 2 1st and reverse brake piston O-rings with ATF and install them to the No. 2 1st and reverse brake piston.
      GTY447956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the No. 2 1st and reverse brake piston O-rings.

  25. INSTALL NO. 2 1ST AND REVERSE BRAKE PISTON
    1. Coat the No. 2 1st and reverse brake piston with ATF and install it to the transaxle case.
      GTY159381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the No. 2 1st and reverse brake piston O-rings.

  26. INSTALL 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

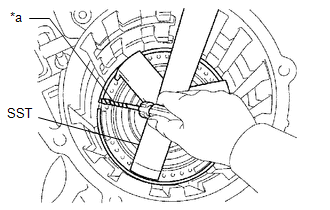

    1. Install the 1st and reverse brake return spring sub-assembly to the transaxle case.
      GTY447669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Place SST on the 1st and reverse brake return spring sub-assembly and compress the 1st and reverse brake return spring sub-assembly with a press.
      • SST: 09387-00070
      NOTE:

      Stop the press when the 1st and reverse brake return spring sub-assembly is flush with the snap ring groove. This prevents the 1st and reverse brake return spring sub-assembly from being deformed.

    3. Using a screwdriver, install the snap ring to the transaxle case.
      NOTE:

      Be careful not to damage the transaxle case.

      HINT:

      Tape the screwdriver tip before use.

  27. INSTALL COUNTER DRIVE GEAR

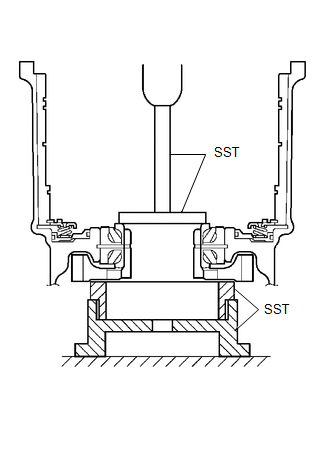

    1. Using SST and a press, install the counter drive gear to the transaxle case.
      GTY423928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09223-15030
      • SST: 09527-17011
      • SST: 09950-60010
        1. 09951-00650
      • SST: 09950-70010
        1. 09951-07150
  28. INSTALL PLANETARY GEAR ASSEMBLY

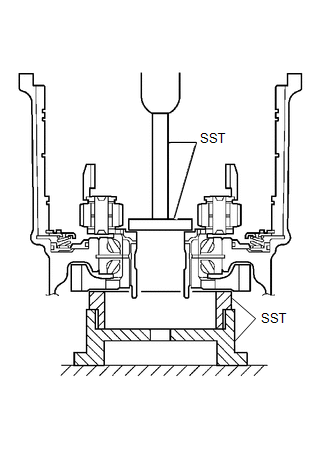

    1. Using SST and a press, install the planetary gear assembly to the transaxle case.
      GTY435399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00480
      • SST: 09223-15030
      • SST: 09527-17011
      • SST: 09950-70010
        1. 09951-07150
  29. INSTALL COUNTER DRIVE GEAR NUT

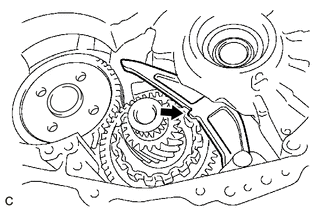

    1. Secure the counter driven gear with the parking lock pawl.
      GTY608301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

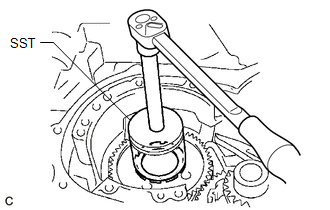

    2. Using SST, install a new counter drive gear nut and counter drive gear lock nut lock washer.
      • SST: 09387-00121

      Torque: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

      GTY540444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

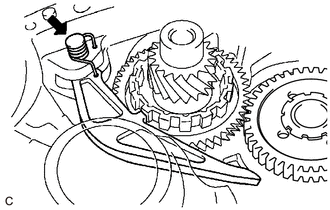

    3. Using a screwdriver, remove the parking lock pawl shaft from the transaxle case.
      GTY586709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the transaxle case.

      HINT:

      Tape the screwdriver tip before use.

    4. Remove the parking lock pawl shaft torsion spring and parking lock pawl from the transaxle case.
    5. Remove the counter driven gear and drive pinion thrust bearing LH from the transaxle case.
      GTY586708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using SST and a small torque wrench, measure the turning torque while turning the counter drive gear at 60 RPM.
      • SST: 09387-00121

      Turning Torque

      0.20 to 0.49 N*m (2.0 to 5.0 kgf*cm, 1.8 to 4.3 in.*lbf)

      GTY606411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the measured value is less than the specified range, gradually tighten the counter drive gear nut until the turning torque falls within the specified range.
      • If the measured value is greater than the specified range, loosen the counter drive gear nut and then tighten it gradually until the turning torque falls within the specified range.

      Maximum Torque

      280 N*m (2855 kgf*cm, 207 ft.*lbf)

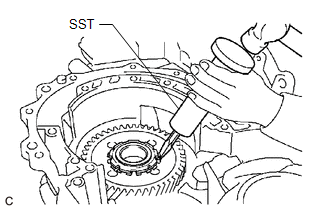

    7. Using SST and a hammer, stake the counter drive gear lock nut lock washer.
      • SST: 09930-00010
      GTY587300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Coat the drive pinion thrust bearing LH with ATF and install it to the transaxle case.
      GTY596666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Drive Pinion Thrust Bearing LH
    9. Install the counter driven gear to the transaxle case.
    10. Coat the parking lock pawl shaft with ATF.
    11. Install the parking lock pawl, parking lock pawl shaft torsion spring and parking lock pawl shaft to the transaxle case.
      GTY586709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Check that the parking lock pawl moves smoothly.

  30. INSTALL 1ST AND REVERSE BRAKE DISC
    1. Install the 4 1st and reverse brake plates, 4 1st and reverse brake discs and 1st and reverse brake flange to the transaxle case.
      GTY439320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 1st and Reverse Brake Disc
      *2 1st and Reverse Brake Flange
      *3 1st and Reverse Brake Plate
    2. Using a screwdriver, install the snap ring to the transaxle case.
      NOTE:

      Be careful not to damage the transaxle case.

      HINT:

      Tape the screwdriver tip before use.

  31. INSPECT PACK CLEARANCE OF 1ST AND REVERSE BRAKE

    See step  18

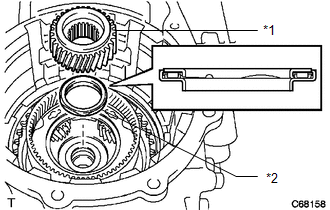

  32. INSTALL FRONT PLANETARY SUN GEAR
    1. Coat the front planetary gear thrust needle roller bearing with ATF and install it to the planetary gear assembly.
    2. Install the front planetary sun gear to the planetary gear assembly.
      GTY430642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Planetary Sun Gear
      *2 Front Planetary Gear Thrust Needle Roller Bearing
  33. INSTALL 2ND BRAKE CYLINDER O-RING
    1. Coat 2 new 2nd brake cylinder O-rings with ATF and install them to the 2nd brake cylinder.
      GTY449077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the 2nd brake cylinder O-rings.

  34. INSTALL 2ND BRAKE PISTON
    1. Coat the 2nd brake piston with ATF and install it to the 2nd brake cylinder.
      GTY164866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the 2nd brake cylinder O-rings when pressing the 2nd brake piston to the 2nd brake cylinder by hand.

  35. INSTALL 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY
    1. Install the 2nd brake piston return spring sub-assembly to the 2nd brake cylinder.
      GTY430093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 2nd Brake Piston Return Spring Sub-assembly
      *2 2nd Brake Cylinder
    2. Place SST on the 2nd brake piston return spring sub-assembly and compress the 2nd brake piston return spring sub-assembly using a press.
      GTY437009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      • SST: 09387-00060
    3. Using a screwdriver, install the snap ring to the 2nd brake cylinder.
      NOTE:
      • Stop the press when the 2nd brake piston return spring sub-assembly is flush with the snap ring groove. This prevents the 2nd brake piston return spring sub-assembly from being deformed.
      • Be careful not to damage the 2nd brake cylinder.

      HINT:

      Tape the screwdriver tip before use.

  36. INSTALL OUTER RACE RETAINER
    1. Install the outer race retainer to the No. 2 one-way clutch.
      GTY447954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL NO. 2 ONE-WAY CLUTCH
    1. Install the No. 2 one-way clutch and 2nd brake assembly to the rear planetary gear assembly.
      GTY445053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Planetary Gear Assembly
      *2 2nd Brake Assembly
      *3 No. 2 One-way Clutch
  38. INSTALL NO. 1 THRUST BEARING RACE
    1. Coat the No. 1 thrust bearing race with ATF install it to the front planetary sun gear.
      GTY560813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL REAR PLANETARY GEAR THRUST NEEDLE ROLLER BEARING
    1. Coat the No. 2 thrust bearing race and rear planetary gear thrust needle roller bearing with MP grease install them to the rear planetary gear assembly.
      GTY599986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Planetary Gear Thrust Needle Roller Bearing
      *2 No. 2 Thrust Bearing Race

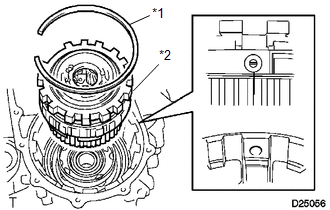

  40. INSTALL REAR PLANETARY GEAR ASSEMBLY
    1. Install the rear planetary gear assembly with No. 2 one-way clutch and 2nd brake assembly to the transaxle case.
      GTY448515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Snap Ring
      *2 Rear Planetary Gear Assembly with No. 2 One-way Clutch and 2nd Brake Assembly
    2. Using a screwdriver, install the snap ring to the transaxle case.
      NOTE:

      Be careful not to damage the transaxle case.

      HINT:

      Tape the screwdriver tip before use.

  41. INSPECT NO. 2 ONE-WAY CLUTCH

    See step  17

  42. INSTALL 2ND BRAKE PISTON SLEEVE
    1. Install the 2nd brake piston sleeve to the transaxle case.
      GTY447949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL 2ND BRAKE DISC
    1. Install the 4 2nd brake discs, 3 2nd brake plates and 2 2nd brake flanges to the transaxle case.
      GTY541252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 2nd Brake Disc
      *2 2nd Brake Plate
      *3 2nd Brake Flange
    2. Using a screwdriver, install the 2 snap rings to the transaxle case as shown in the illustration.
      GTY449073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the transaxle case.

      HINT:

      Tape the screwdriver tip before use.

  44. INSPECT PACK CLEARANCE OF 2ND BRAKE

    See step  19

  45. INSTALL ONE-WAY CLUTCH ASSEMBLY
    1. Coat the No. 2 planetary carrier thrust washer with ATF and install it to the rear planetary sun gear assembly.
      GTY451404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 One-way Clutch Assembly
      *2 No. 2 Planetary Carrier Thrust Washer
    2. Install the one-way clutch assembly to the rear planetary sun gear assembly.
  46. INSPECT ONE-WAY CLUTCH ASSEMBLY

    See step  16

  47. INSTALL REAR PLANETARY SUN GEAR ASSEMBLY
    1. Coat the rear planetary sun gear thrust needle roller bearing with MP grease and install it to the rear planetary gear assembly.
      GTY560816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Coat the No. 1 planetary carrier thrust washer with MP grease and install it to the rear planetary gear assembly.
      GTY602458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear planetary sun gear assembly with one-way clutch assembly to the transaxle case.
      GTY447948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL REAR NO. 2 PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
    1. Coat the rear No. 2 planetary sun gear thrust needle roller bearing with ATF and install it to the rear planetary sun gear assembly.
      GTY159396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL DIRECT CLUTCH HUB
    1. Install the direct clutch hub to the transaxle case.
      GTY438174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL THRUST NEEDLE ROLLER BEARING

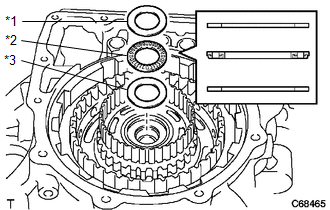

    1. Coat the No. 3 thrust bearing race and thrust needle roller bearing with ATF and install them to the direct clutch hub.
      GTY439026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 C-2 Hub Thrust Bearing Race
      *2 Thrust Needle Roller Bearing
      *3 No. 3 Thrust Bearing Race
    2. Coat the C-2 hub thrust bearing race with MP grease and install it to the direct clutch hub.
  51. INSTALL 2ND COAST AND OVERDRIVE BRAKE DISC
    1. Install the 2 2nd coast and overdrive brake discs, 2 No. 2 2nd coast and overdrive brake flanges and 2nd coast and overdrive brake flange to the transaxle case.
      GTY433364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 2nd Coast and Overdrive Brake Disc
      *2 2nd Coast and Overdrive Brake Flange
      *3 No. 2 2nd Coast and Overdrive Brake Flange
  52. INSTALL DIRECT CLUTCH DRUM O-RING
    1. Coat a new direct clutch drum O-ring with ATF and install it to the direct clutch drum sub-assembly.
      GTY449074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the direct clutch drum O-ring.

  53. INSTALL DIRECT CLUTCH DRUM SUB-ASSEMBLY
    1. Coat the direct clutch drum sub-assembly with ATF.
    2. Align the cutout of the intermediate shaft sub-assembly with the matchmark on the direct clutch drum sub-assembly and install it to the intermediate shaft sub-assembly.
      GTY157696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the direct clutch drum O-ring or the lip of the direct clutch drum sub-assembly.

  54. INSTALL DIRECT CLUTCH PISTON O-RING
    1. Coat 2 new direct clutch piston O-rings with ATF and install them to the direct clutch piston sub-assembly.
      GTY449072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the direct clutch piston O-rings.

  55. INSTALL DIRECT CLUTCH PISTON SUB-ASSEMBLY
    1. Coat the direct clutch piston sub-assembly with ATF and install it to the intermediate shaft sub-assembly.
      GTY165337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the direct clutch piston O-rings or the direct clutch piston sub-assembly.

  56. INSTALL DIRECT CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. Install the direct clutch return spring sub-assembly to the intermediate shaft sub-assembly.
      GTY439683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place SST on the direct clutch return spring sub-assembly and compress the direct clutch return spring sub-assembly with a press.
      • SST: 09387-00020
      NOTE:

      Stop the press when the direct clutch return spring sub-assembly is flush with the snap ring groove. This prevents the direct clutch return spring sub-assembly from being deformed.

    3. Using snap ring pliers, install the snap ring to the intermediate shaft sub-assembly.
      NOTE:

      Do not expand the snap ring excessively.

  57. INSTALL DIRECT CLUTCH DISC
    1. Coat the 3 rear clutch flanges, 3 direct clutch discs and direct clutch flange with ATF and install them to the intermediate shaft sub-assembly.
      GTY440519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Direct Clutch Flange
      *2 Snap Ring
      *3 Direct Clutch Disc
      *4 Rear Clutch Flange
    2. Using a screwdriver, install the snap ring to the intermediate shaft sub-assembly.
      NOTE:

      Be careful not to damage the intermediate shaft sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  58. INSTALL REVERSE CLUTCH DISC
    1. Install the 3 No. 3 clutch plates, 3 reverse clutch discs and reverse clutch flange to the intermediate shaft sub-assembly.
      GTY439049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Snap Ring
      *2 Reverse Clutch Flange
      *3 No. 3 Clutch Plate
      *4 Reverse Clutch Disc
    2. Using a screwdriver, install the snap ring to the intermediate shaft sub-assembly.
      NOTE:

      Be careful not to damage the intermediate shaft sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  59. INSPECT PACK CLEARANCE OF REVERSE CLUTCH

    See step  20

  60. INSPECT PACK CLEARANCE OF DIRECT CLUTCH

    See step  21

  61. INSTALL INTERMEDIATE SHAFT ASSEMBLY
    1. Install the intermediate shaft assembly to the transaxle case.
      GTY455873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. INSPECT 2ND COAST AND OVERDRIVE BRAKE CLEARANCE

    See step  22

  63. INSTALL REAR CLUTCH DRUM THRUST NEEDLE ROLLER BEARING
    1. Coat the rear clutch drum thrust needle roller bearing with MP grease and install it to the rear transaxle cover sub-assembly.
      GTY560811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. INSPECT INTERMEDIATE SHAFT ASSEMBLY END PLAY
    1. Install the rear transaxle cover sub-assembly to the transaxle case with the 11 bolts.

      Torque: 24.5 N*m (250 kgf*cm, 18 ft.*lbf)

      GTY449064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a dial indicator, measure the intermediate shaft assembly end play.
      GTY220877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      End Play

      0.204 to 0.966 mm (0.00803 to 0.03803 in.)

      If the end play is not as specified, replace the rear clutch drum thrust needle roller bearing with one of a different thickness.

      HINT:

      There are 2 bearings of different thicknesses.

      Rear Clutch Drum Thrust Needle Roller Bearing

      Color Thickness (mm (in.))
      Brown 0.785 mm (0.0309 in.)
      Black 1.1 mm (0.0433 in.)
    3. Remove the 11 bolts from the rear transaxle cover sub-assembly.
  65. INSTALL TRANSAXLE CASE O-RING
    1. Coat 4 new transaxle case O-rings with ATF and install them to the transaxle case.
      GTY449069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. INSTALL REAR TRANSAXLE COVER NEEDLE ROLLER BEARING

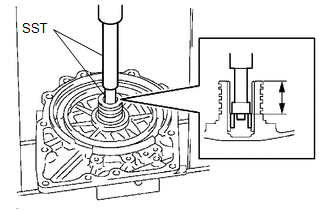

    1. Coat a new rear transaxle cover needle roller bearing with ATF.
      GTY450341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, install the rear transaxle cover needle roller bearing to the rear transaxle cover sub-assembly.
      • SST: 09950-60010
        1. 09951-00190
        2. 09952-06010
      • SST: 09950-70010
        1. 09951-07100

      Standard Clearance

      25.1 mm (0.988 in.)

  67. INSTALL CLUTCH DRUM OIL SEAL RING
    1. Coat the 3 new clutch drum oil seal rings with ATF and install them to the rear transaxle cover sub-assembly.
      GTY449071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not expand the 3 clutch drum oil seal rings excessively.

  68. INSTALL 2ND COAST AND OVERDRIVE O-RING
    1. Coat 2 new 2nd coast and overdrive O-rings with ATF and install them to the 2nd coast and overdrive brake piston.
      GTY447340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the 2nd coast and overdrive O-rings.

  69. INSTALL 2ND COAST AND OVERDRIVE BRAKE PISTON
    1. Coat the 2nd coast and overdrive brake piston with ATF and install it to the rear transaxle cover sub-assembly.
      GTY159438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the 2nd coast and overdrive O-rings.

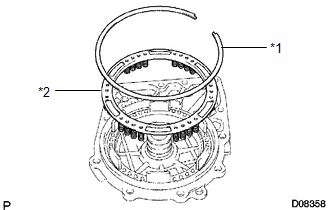

  70. INSTALL OVERDRIVE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. Install the overdrive brake return spring sub-assembly to the 2nd coast and overdrive brake piston.
    2. Place SST on the overdrive brake return spring sub-assembly and compress the overdrive brake return spring sub-assembly using a press.
      GTY447816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Snap Ring
      *2 Overdrive Brake Return Spring Sub-assembly
      • SST: 09387-00070
      NOTE:

      Stop the press when the overdrive brake return spring sub-assembly is flush with the snap ring groove. This prevents the overdrive brake return spring sub-assembly from being deformed.

    3. Using a screwdriver, install the snap ring to the rear transaxle cover sub-assembly.
      NOTE:

      Be careful not to damage the rear transaxle cover sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  71. INSTALL REAR TRANSAXLE COVER PLUG
    1. Coat 4 new O-rings with ATF and install them to the 4 rear transaxle cover plugs.
      GTY449070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 rear transaxle cover plugs to the rear transaxle cover sub-assembly.

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

      NOTE:

      Be careful not to damage the O-rings.

  72. INSTALL REAR TRANSAXLE COVER ASSEMBLY
    1. Remove any remaining seal packing from the contact surfaces of the rear transaxle cover assembly and transaxle case.
      NOTE:

      Make sure that there is no ATF on the contact surfaces.

    2. Apply seal packing to the transaxle case.
      GTY159378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal Packing

      Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

    3. Install the rear transaxle cover assembly to the transaxle case with the 11 bolts.
      GTY449064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 24.5 N*m (250 kgf*cm, 18 ft.*lbf)

  73. INSTALL FORWARD CLUTCH HUB SUB-ASSEMBLY
    1. Install the forward clutch hub sub-assembly to the transaxle case.
      GTY449066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. INSTALL FORWARD CLUTCH HUB THRUST NEEDLE ROLLER BEARING
    1. Coat the forward clutch hub thrust needle roller bearing with ATF and install it to the forward clutch hub sub-assembly.
      GTY159394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. INSTALL INPUT SHAFT OIL SEAL RING
    1. Coat a new input shaft oil seal ring with ATF and install it to the input shaft sub-assembly.
      GTY455501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the input shaft oil seal ring.

  76. INSTALL FORWARD CLUTCH PISTON O-RING
    1. Coat a new forward clutch piston O-ring with ATF and install it to the forward clutch piston.
      GTY455848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the forward clutch piston O-ring.

  77. INSTALL FORWARD CLUTCH PISTON
    1. Coat the forward clutch piston with ATF and install it to the input shaft sub-assembly.
      GTY162376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the forward clutch piston O-ring.

  78. INSTALL FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY
    1. Install the forward clutch return spring sub-assembly and No. 1 clutch balancer to the input shaft sub-assembly.
      GTY442883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Clutch Balancer
      *2 Forward Clutch Return Spring Sub-assembly
    2. Place SST on the No. 1 clutch balancer and compress the forward clutch return spring sub-assembly using a press.
      GTY437218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09320-89010
      NOTE:

      Stop the press when the forward clutch return spring sub-assembly is flush with the snap ring groove. This prevents the forward clutch return spring sub-assembly from being deformed.

    3. Using snap ring pliers, install the snap ring to the input shaft sub-assembly.
      NOTE:

      Do not expand the snap ring excessively.

  79. INSTALL FRONT CLUTCH DISC
    1. Install the 4 forward multiple disc clutch plates, 4 front clutch discs and forward clutch flange to the input shaft sub-assembly.
      GTY425254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Clutch Disc
      *2 Forward Clutch Flange
      *3 Forward Multiple Disc Clutch Plate
    2. Using a screwdriver, install the snap ring to the input shaft sub-assembly.
      NOTE:

      Be careful not to damage the input shaft sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  80. INSPECT PACK CLEARANCE OF FORWARD CLUTCH

    See step  23

  81. INSTALL STATOR SHAFT THRUST NEEDLE ROLLER BEARING
    1. Coat the stator shaft thrust needle roller bearing with ATF and install it to the input shaft sub-assembly.
      GTY162689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  82. INSTALL INPUT SHAFT ASSEMBLY
    1. Install the input shaft assembly to the transaxle case.
      GTY448953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  83. INSTALL OVERDRIVE BRAKE O-RING
    1. Coat 2 new overdrive brake O-rings with ATF and install them to the transaxle case.
      GTY447424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  84. INSTALL DIFFERENTIAL GEAR ASSEMBLY
    1. Install the differential gear assembly to the transaxle case.
      GTY440991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  85. INSTALL OIL PUMP ASSEMBLY
    1. Install the oil pump assembly to the transaxle case with the 7 bolts.
      GTY448952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 22.1 N*m (225 kgf*cm, 16 ft.*lbf)

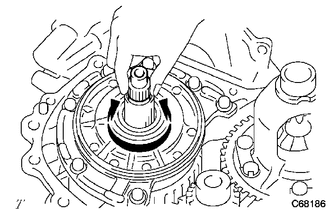

  86. INSPECT INPUT SHAFT ASSEMBLY
    1. Make sure that the input shaft assembly turns smoothly.
      GTY165040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  87. INSPECT INPUT SHAFT ASSEMBLY END PLAY

    See step  14

  88. INSTALL TRANSAXLE HOUSING
    1. Remove any remaining seal packing from the contact surfaces of the transaxle housing and transaxle case.
      NOTE:

      Make sure that there is no ATF on the contact surfaces.

    2. Apply seal packing to the transaxle case.
      GTY164441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal Packing

      Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

    3. Temporarily install the transaxle housing to the transaxle case with the 11 bolts.
      GTY432775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 29.4 N*m (300 kgf*cm, 22 ft.*lbf)

    4. Clean and degrease the 3 bolts and the installation holes in the transaxle case.
      GTY445332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive
    5. Apply adhesive to 2 or 3 threads on the ends of the 3 bolts.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      In order to ensure proper sealing of the 3 bolts, apply adhesive to the 3 bolts and install them within 10 minutes of adhesive application.

    6. Install the 3 bolts.

      Torque: 22.1 N*m (225 kgf*cm, 16 ft.*lbf)

      GTY452351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  89. INSTALL C-2 ACCUMULATOR PISTON
    1. Coat 2 new C-2 accumulator piston O-rings with ATF and install them to the C-2 accumulator piston.
      GTY443140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the C-2 accumulator piston O-rings.

    2. Install the C-2 accumulator piston compression spring and C-2 accumulator piston to the transaxle case.
      GTY159301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      C-2 Accumulator Piston Compression Spring

      Spring Free Length
      (mm (in.))      		 Color
      C-2 66.20 to 67.60 (2.61 to 2.66) -
  90. INSTALL C-3 ACCUMULATOR PISTON
    1. Coat 2 new C-3 accumulator piston O-rings with ATF and install them to the C-3 accumulator piston.
      GTY443143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the C-3 accumulator piston O-rings.

    2. Install the C-3 accumulator piston compression spring and C-3 accumulator piston to the transaxle case.
      GTY159302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      C-3 Accumulator Piston Compression Spring

      Spring Free Length
      (mm (in.))      		 Color
      C-3 87.30 (3.437) Orange
  91. INSTALL B-2 ACCUMULATOR PISTON
    1. Coat 2 new B-2 accumulator piston O-rings with ATF and install them to the B-2 accumulator piston.
      GTY454588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the B-2 accumulator piston O-rings.

    2. Install the B-2 accumulator piston compression spring and B-2 accumulator piston to the transaxle case.
      GTY159303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      B-2 Accumulator Piston Compression Spring

      Spring Free Length
      (mm (in.))      		 Color
      B-2 66.90 (2.634) White
  92. INSTALL CHECK BALL BODY
    1. Install the check ball body compression spring and check ball body to the transaxle case.
      GTY165482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  93. INSTALL BRAKE DRUM GASKET
    1. Coat a new brake drum gasket with ATF and install it to the transaxle case.
      GTY455518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the brake drum gasket.

  94. INSTALL TRANSAXLE CASE 2ND BRAKE GASKET
    1. Coat a new transaxle case 2nd brake gasket with ATF and install it to the transaxle case.
      GTY447431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the transaxle case 2nd brake gasket.

  95. INSTALL TRANSAXLE CASE GASKET
    1. Coat a new transaxle case gasket with ATF and install it to the transaxle case.
      GTY447427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the transaxle case gasket.

  96. INSTALL TRANSMISSION WIRE

    See step  1

  97. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

    See step  5

  98. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

    See step  6

  99. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

    See step  7

  100. INSTALL DRAIN PLUG
    1. Using a 10 mm hexagon socket wrench, install the drain plug and a new gasket to the automatic transaxle oil pan sub-assembly.
  101. INSTALL BREATHER PLUG
    1. Coat a new O-ring with ATF and install it to the breather plug.
      NOTE:

      Be careful not to damage the O-ring.

      GTY425686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the breather plug to the transaxle case.

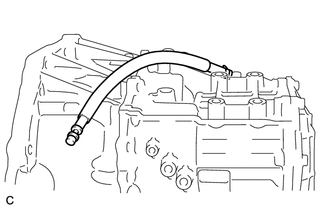

  102. INSTALL BREATHER PLUG HOSE
    1. Install the No. 1 breather plug (ATM) to the breather plug hose.
    2. Install the breather plug hose to the breather plug.
      GTY440960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  103. INSTALL NO. 1 TRANSAXLE CASE PLUG
    1. Coat 4 new O-rings with ATF and install them to the 4 No. 1 transaxle case plugs.
      NOTE:

      Be careful not to damage the O-rings.

    2. Install the 4 No. 1 transaxle case plugs to the transaxle housing and transaxle case.
      GTY447430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

    3. Coat a new O-ring with ATF and install it to the No. 1 transaxle case plug.
      NOTE:

      Be careful not to damage the O-ring.

    4. Install the No. 1 transaxle case plug to the transaxle case.
      GTY447429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

  104. INSTALL OIL COOLER TUBE UNION
    1. for Elbow Type:
      GTY448955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat a new O-ring with ATF and install it to the oil cooler tube union.
        NOTE:

        Be careful not to damage the O-ring.

      2. Install the oil cooler tube union to the transaxle case as shown in the illustration.

        Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

    2. for Straight Type:
      GTY448956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Coat a new O-ring with ATF and install it to the oil cooler tube union.
        NOTE:

        Be careful not to damage the O-ring.

      2. Install the oil cooler tube union to the transaxle case.

        Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

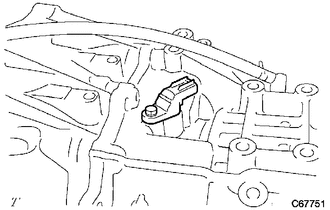

  105. INSTALL TRANSMISSION REVOLUTION SENSOR
    1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
      GTY437883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the O-ring.

    2. Install the transmission revolution sensor to the automatic transaxle assembly with the bolt.
      GTY455517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

  106. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Temporarily install the park/neutral position switch assembly to the transaxle case with the 2 bolts.
      GTY437760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

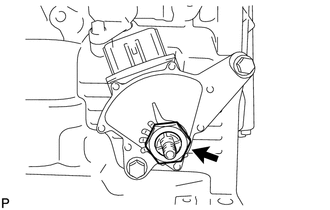

    2. Install the lock plate and lock nut to the park/neutral position switch assembly.
      GTY167714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

    3. Temporarily install the control shaft lever to the manual valve lever shaft with the nut and washer.
      GTY437757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the control shaft lever counterclockwise until it stops, then turn it clockwise 2 notches.

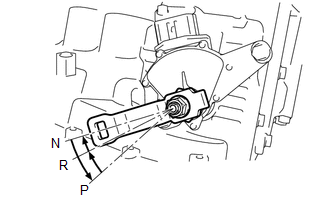

      GTY430303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the nut, washer and control shaft lever from the manual valve lever shaft.

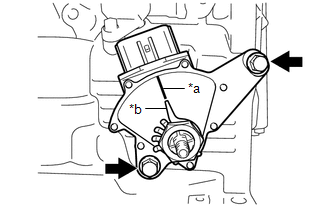

    6. Align the indicator with the neutral basic line.
      GTY454069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Indicator
    7. Hold the park/neutral position switch assembly in position and tighten the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

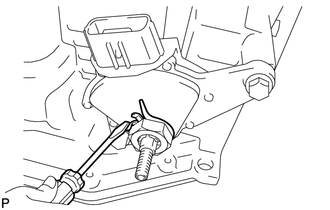

    8. Using a screwdriver, bend down the tabs of the lock plate.
      GTY453440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Install the control shaft lever to the manual valve lever shaft with the nut and washer.
      GTY437757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)

scientia non olet · About LEMON Manuals
