Components [08/2013 - 08/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

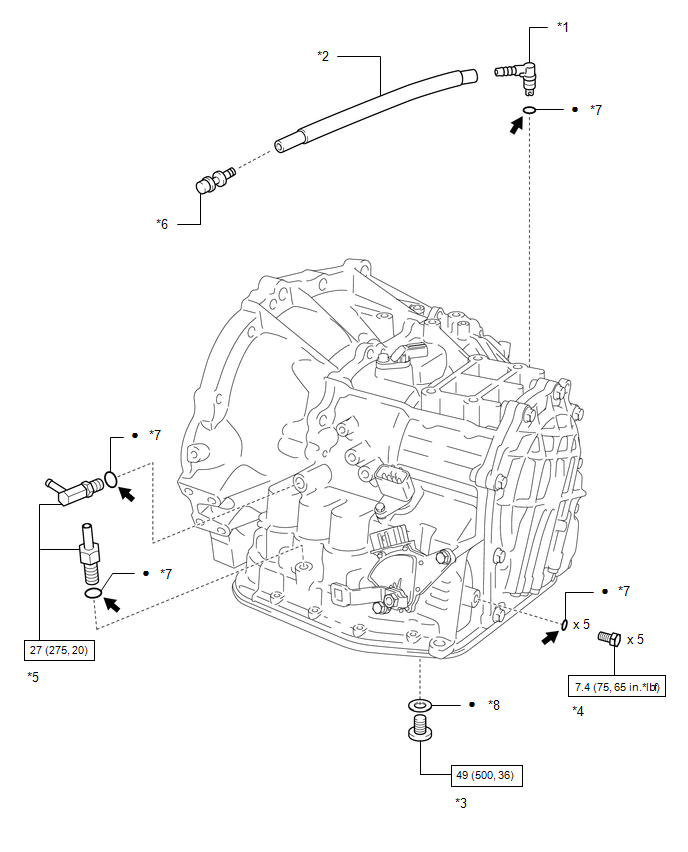

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (1 Of 15)
GTY442823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BREATHER PLUG *2 BREATHER PLUG HOSE
*3 DRAIN PLUG *4 NO. 1 TRANSAXLE CASE PLUG
*5 OIL COOLER TUBE UNION *6 NO. 1 BREATHER PLUG (ATM)
*7 O-RING *8 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS - -

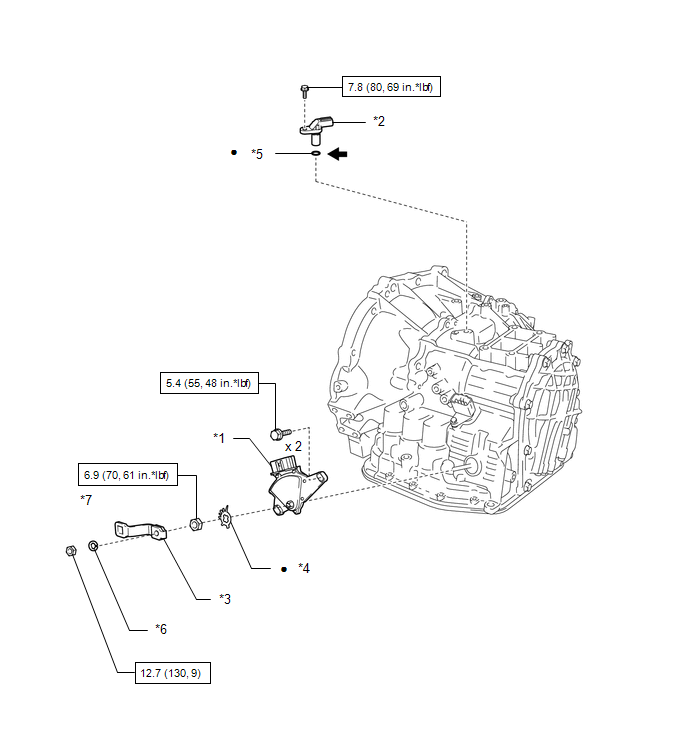

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (2 Of 15)
GTY453897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PARK/NEUTRAL POSITION SWITCH ASSEMBLY *2 TRANSMISSION REVOLUTION SENSOR
*3 CONTROL SHAFT LEVER *4 LOCK PLATE
*5 O-RING *6 WASHER
*7 LOCK NUT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS - -

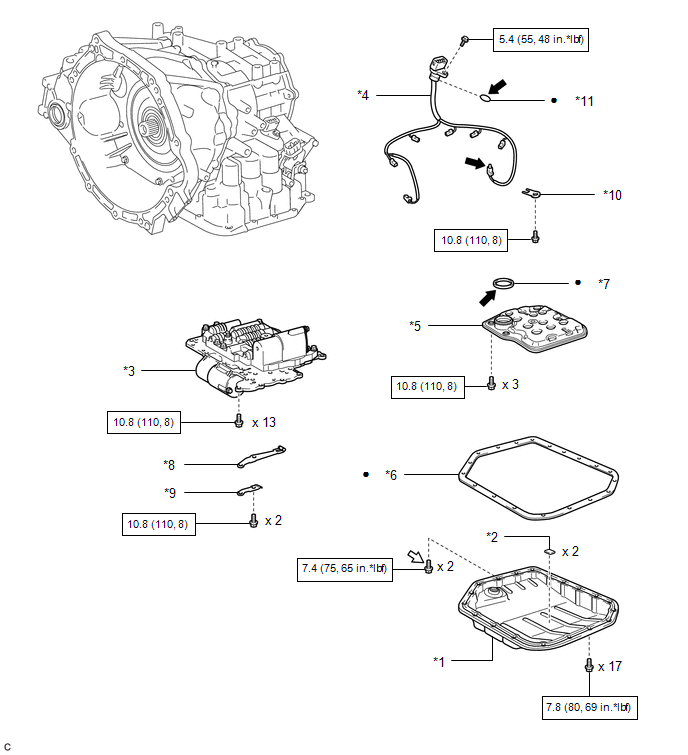

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (3 Of 15)
GTY575517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY *2 TRANSMISSION OIL CLEANER MAGNET
*3 TRANSMISSION VALVE BODY ASSEMBLY *4 TRANSMISSION WIRE
*5 VALVE BODY OIL STRAINER ASSEMBLY *6 AUTOMATIC TRANSAXLE OIL PAN GASKET
*7 OIL STRAINER GASKET *8 MANUAL DETENT SPRING SUB-ASSEMBLY
*9 MANUAL DETENT SPRING COVER *10 TEMPERATURE SENSOR CLAMP
*11 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS Adhesive 1324
* Precoated part - -

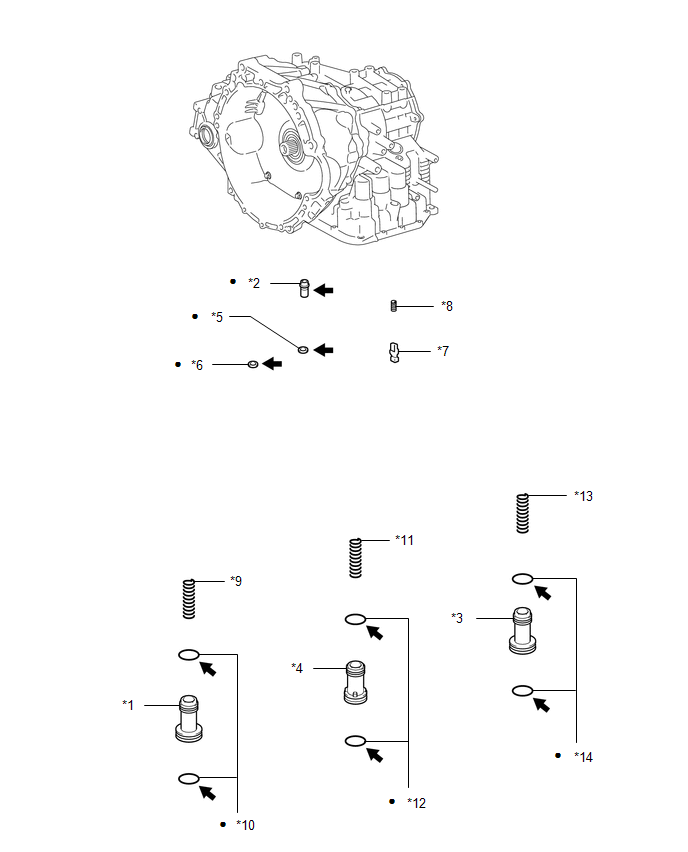

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (4 Of 15)
GTY455003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 B-2 ACCUMULATOR PISTON *2 BRAKE DRUM GASKET
*3 C-2 ACCUMULATOR PISTON *4 C-3 ACCUMULATOR PISTON
*5 TRANSAXLE CASE 2ND BRAKE GASKET *6 TRANSAXLE CASE GASKET
*7 CHECK BALL BODY *8 CHECK BALL BODY COMPRESSION SPRING
*9 B-2 ACCUMULATOR PISTON COMPRESSION SPRING *10 B-2 ACCUMULATOR PISTON O-RING
*11 C-3 ACCUMULATOR PISTON COMPRESSION SPRING *12 C-3 ACCUMULATOR PISTON O-RING
*13 C-2 ACCUMULATOR PISTON COMPRESSION SPRING *14 C-2 ACCUMULATOR PISTON O-RING
• Non-reusable part ATF WS

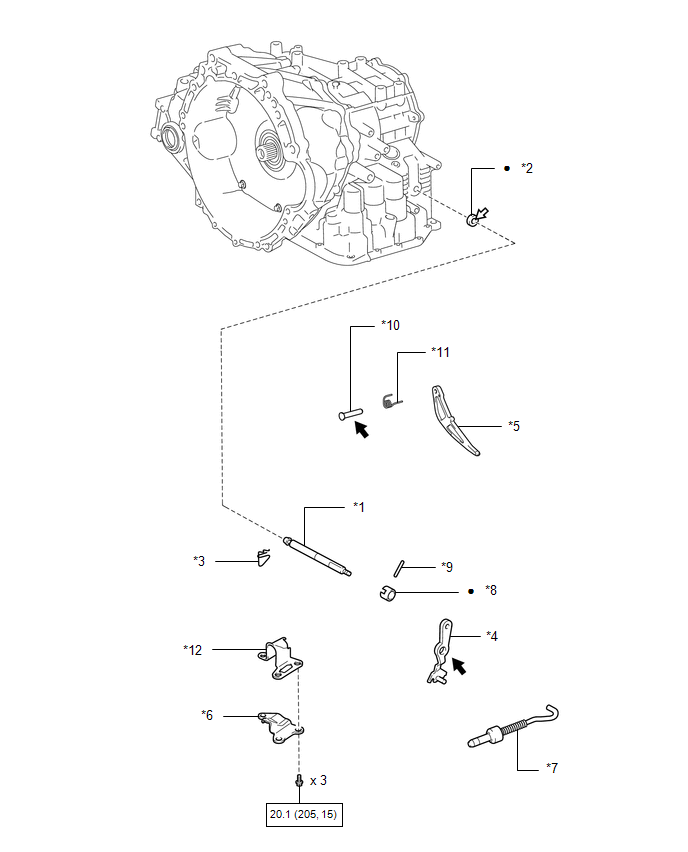

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (5 Of 15)
GTY430155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MANUAL VALVE LEVER SHAFT *2 MANUAL VALVE LEVER SHAFT OIL SEAL
*3 MANUAL VALVE LEVER SHAFT RETAINER SPRING *4 MANUAL VALVE LEVER SUB-ASSEMBLY
*5 PARKING LOCK PAWL *6 PARKING LOCK PAWL BRACKET
*7 PARKING LOCK ROD SUB-ASSEMBLY *8 MANUAL VALVE LEVER SPACER
*9 MANUAL VALVE LEVER SHAFT SLOTTED SPRING PIN *10 PARKING LOCK PAWL SHAFT
*11 PARKING LOCK PAWL SHAFT TORSION SPRING *12 CAM GUIDE SLEEVE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS MP grease

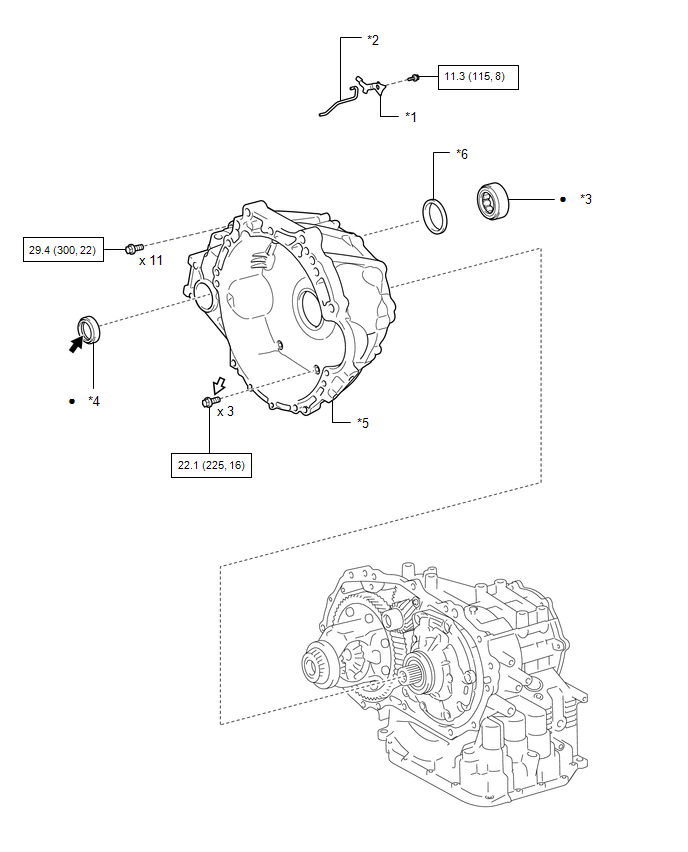

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (6 Of 15)
GTY590275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BEARING LOCK PLATE *2 DIFFERENTIAL GEAR LUBE APPLY TUBE
*3 FRONT DRIVE PINION FRONT CYLINDRICAL ROLLER BEARING *4 FRONT DRIVE SHAFT OIL SEAL RH
*5 TRANSAXLE HOUSING *6 FRONT DRIVE PINION THRUST NEEDLE ROLLER BEARING RH
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease Adhesive 1324
* Precoated part - -

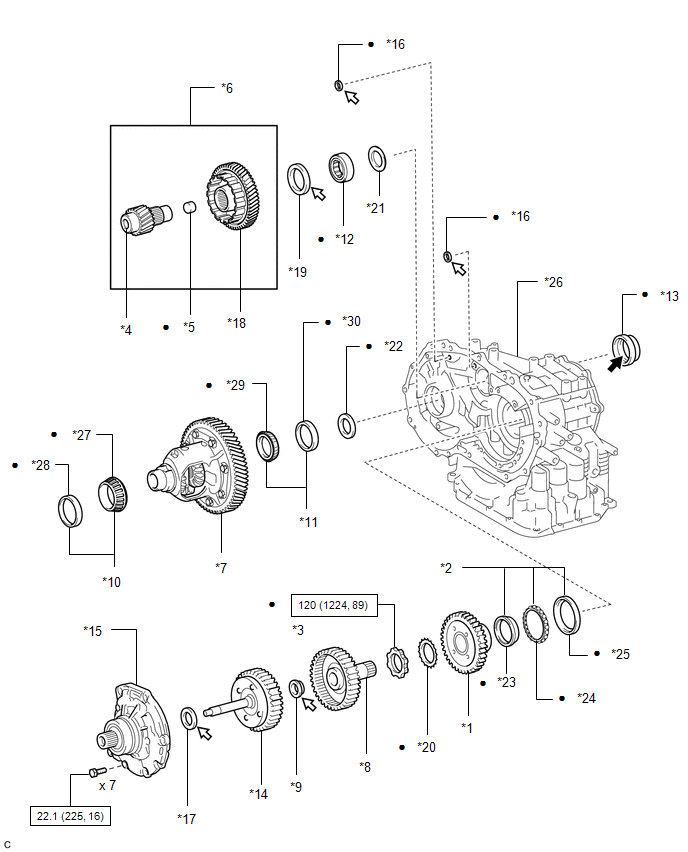

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (7 Of 15)
GTY578980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COUNTER DRIVE GEAR *2 COUNTER DRIVE GEAR BEARING RH
*3 COUNTER DRIVE GEAR NUT *4 DIFFERENTIAL DRIVE PINION
*5 DIFFERENTIAL DRIVE PINION PLUG *6 DIFFERENTIAL DRIVE PINION SUB-ASSEMBLY
*7 DIFFERENTIAL GEAR ASSEMBLY *8 FORWARD CLUTCH HUB SUB-ASSEMBLY
*9 FORWARD CLUTCH HUB THRUST NEEDLE ROLLER BEARING *10 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
*11 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING *12 FRONT DRIVE PINION REAR CYLINDRICAL ROLLER BEARING
*13 FRONT DRIVE SHAFT OIL SEAL LH *14 INPUT SHAFT ASSEMBLY
*15 OIL PUMP ASSEMBLY *16 OVERDRIVE BRAKE O-RING
*17 STATOR SHAFT THRUST NEEDLE ROLLER BEARING *18 COUNTER DRIVEN GEAR
*19 DRIVE PINION THRUST BEARING LH *20 COUNTER DRIVE GEAR LOCK NUT LOCK WASHER
*21 NO. 1 TRANSAXLE CASE PLATE *22 FRONT DIFFERENTIAL REAR CASE SHIM
*23 COUNTER DRIVE GEAR BEARING RH (INNER RACE) *24 ANGULAR BALL
*25 COUNTER DRIVE GEAR BEARING RH (OUTER RACE) *26 TRANSAXLE CASE
*27 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) *28 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)
*29 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) *30 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease ATF WS

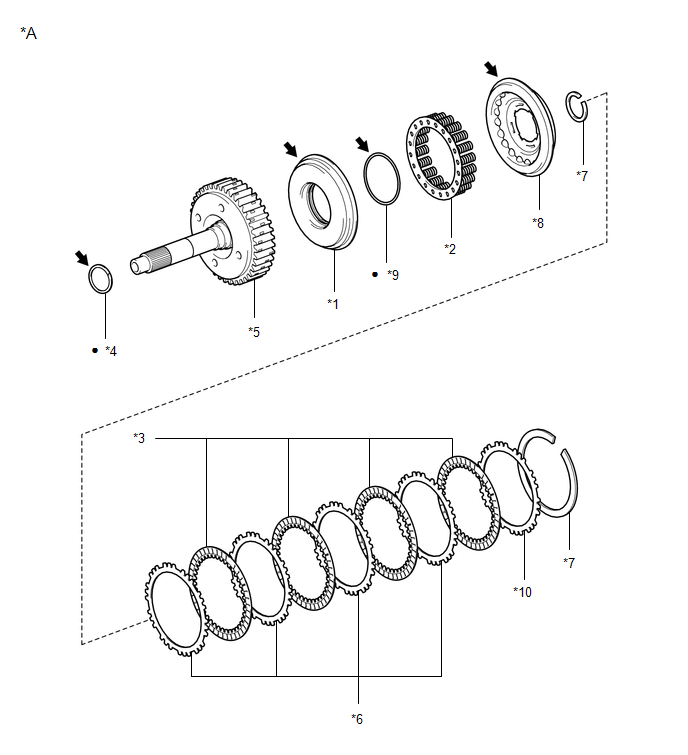

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (8 Of 15)
GTY434183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A INPUT SHAFT ASSEMBLY - -
*1 FORWARD CLUTCH PISTON *2 FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY
*3 FRONT CLUTCH DISC *4 INPUT SHAFT OIL SEAL RING
*5 INPUT SHAFT SUB-ASSEMBLY *6 FORWARD MULTIPLE DISC CLUTCH PLATE
*7 SNAP RING *8 NO. 1 CLUTCH BALANCER
*9 FORWARD CLUTCH PISTON O-RING *10 FORWARD CLUTCH FLANGE
• Non-reusable part ATF WS

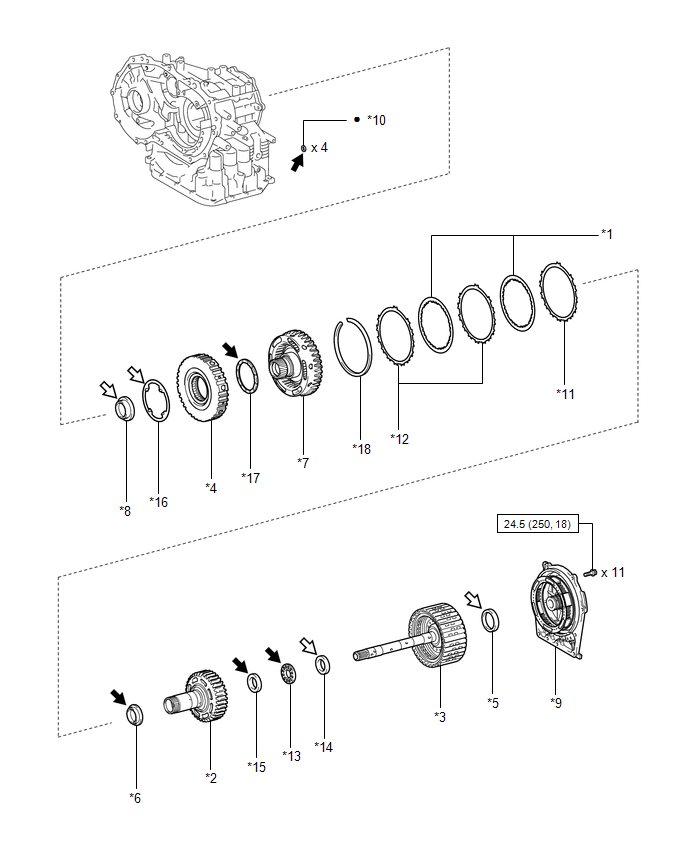

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (9 Of 15)
GTY606542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 2ND COAST AND OVERDRIVE BRAKE DISC *2 DIRECT CLUTCH HUB
*3 INTERMEDIATE SHAFT ASSEMBLY *4 ONE-WAY CLUTCH ASSEMBLY
*5 REAR CLUTCH DRUM THRUST NEEDLE ROLLER BEARING *6 REAR NO. 2 PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
*7 REAR PLANETARY SUN GEAR ASSEMBLY *8 REAR PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
*9 REAR TRANSAXLE COVER ASSEMBLY *10 TRANSAXLE CASE O-RING
*11 2ND COAST AND OVERDRIVE BRAKE FLANGE *12 NO. 2 2ND COAST AND OVERDRIVE BRAKE FLANGE
*13 THRUST NEEDLE ROLLER BEARING *14 C-2 HUB THRUST BEARING RACE
*15 NO. 3 THRUST BEARING RACE *16 NO. 1 PLANETARY CARRIER THRUST WASHER
*17 NO. 2 PLANETARY CARRIER THRUST WASHER *18 SNAP RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS MP grease

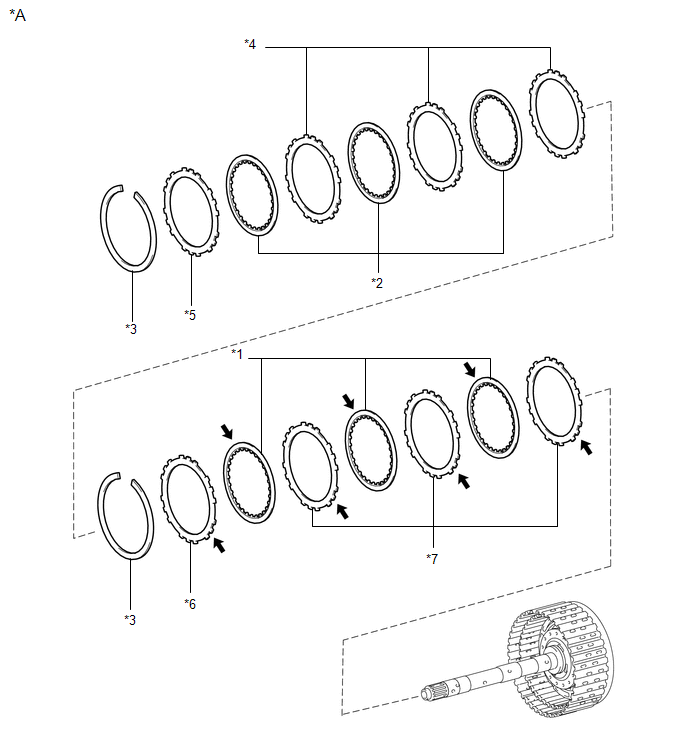

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (10 Of 15)
GTY546839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A INTERMEDIATE SHAFT ASSEMBLY - -
*1 DIRECT CLUTCH DISC *2 REVERSE CLUTCH DISC
*3 SNAP RING *4 NO. 3 CLUTCH PLATE
*5 REVERSE CLUTCH FLANGE *6 DIRECT CLUTCH FLANGE
*7 REAR CLUTCH FLANGE - -
ATF WS - -

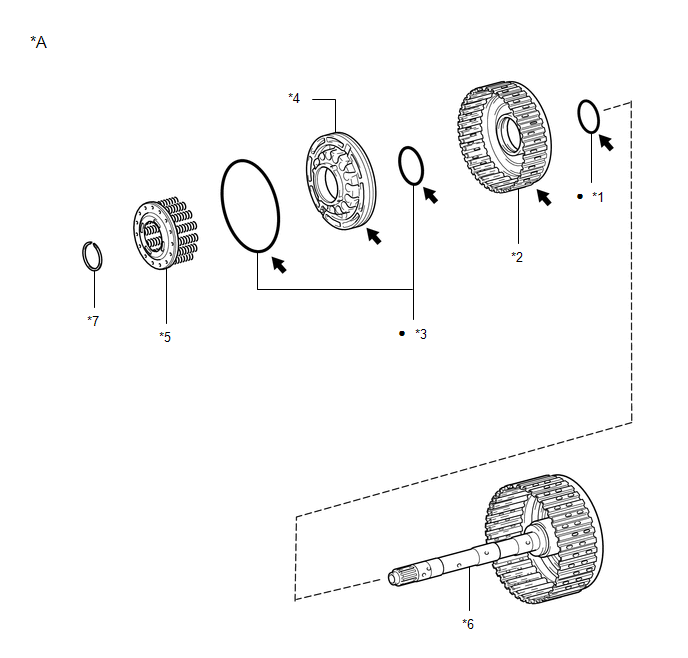

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (11 Of 15)
GTY423696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A INTERMEDIATE SHAFT ASSEMBLY - -
*1 DIRECT CLUTCH DRUM O-RING *2 DIRECT CLUTCH DRUM SUB-ASSEMBLY
*3 DIRECT CLUTCH PISTON O-RING *4 DIRECT CLUTCH PISTON SUB-ASSEMBLY
*5 DIRECT CLUTCH RETURN SPRING SUB-ASSEMBLY *6 INTERMEDIATE SHAFT SUB-ASSEMBLY
*7 SNAP RING - -
• Non-reusable part ATF WS

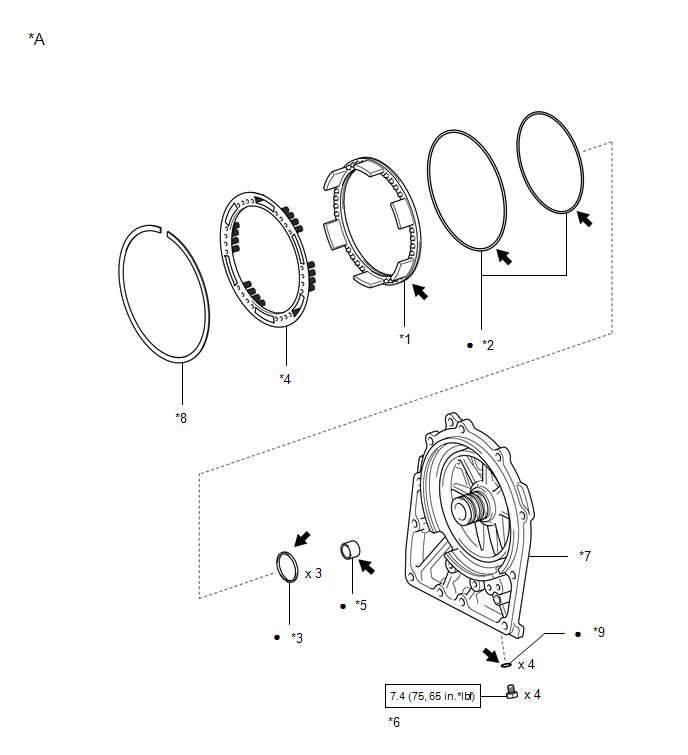

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (12 Of 15)
GTY426858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A REAR TRANSAXLE COVER ASSEMBLY - -
*1 2ND COAST AND OVERDRIVE BRAKE PISTON *2 2ND COAST AND OVERDRIVE O-RING
*3 CLUTCH DRUM OIL SEAL RING *4 OVERDRIVE BRAKE RETURN SPRING SUB-ASSEMBLY
*5 REAR TRANSAXLE COVER NEEDLE ROLLER BEARING *6 REAR TRANSAXLE COVER PLUG
*7 REAR TRANSAXLE COVER SUB-ASSEMBLY *8 SNAP RING
*9 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS - -

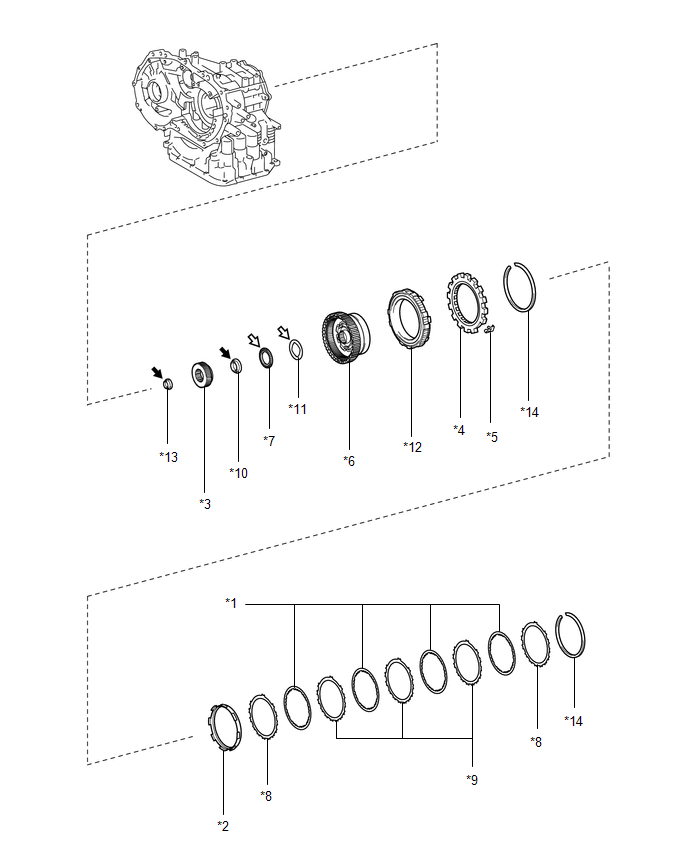

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (13 Of 15)
GTY609383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 2ND BRAKE DISC *2 2ND BRAKE PISTON SLEEVE
*3 FRONT PLANETARY SUN GEAR *4 NO. 2 ONE-WAY CLUTCH
*5 OUTER RACE RETAINER *6 REAR PLANETARY GEAR ASSEMBLY
*7 REAR PLANETARY GEAR THRUST NEEDLE ROLLER BEARING *8 2ND BRAKE FLANGE
*9 2ND BRAKE PLATE *10 NO. 1 THRUST BEARING RACE
*11 NO. 2 THRUST BEARING RACE *12 2ND BRAKE ASSEMBLY
*13 FRONT PLANETARY GEAR THRUST NEEDLE ROLLER BEARING *14 SNAP RING
ATF WS MP grease

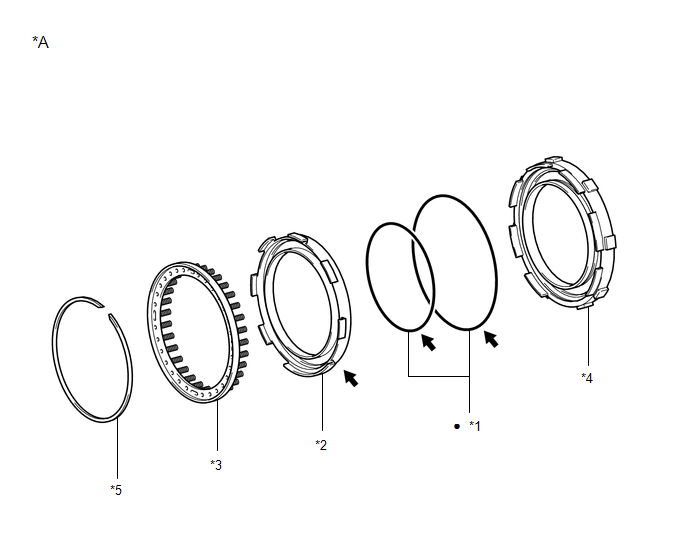

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (14 Of 15)
GTY436801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A 2ND BRAKE ASSEMBLY - -
*1 2ND BRAKE CYLINDER O-RING *2 2ND BRAKE PISTON
*3 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY *4 2ND BRAKE CYLINDER
*5 SNAP RING - -
• Non-reusable part ATF WS

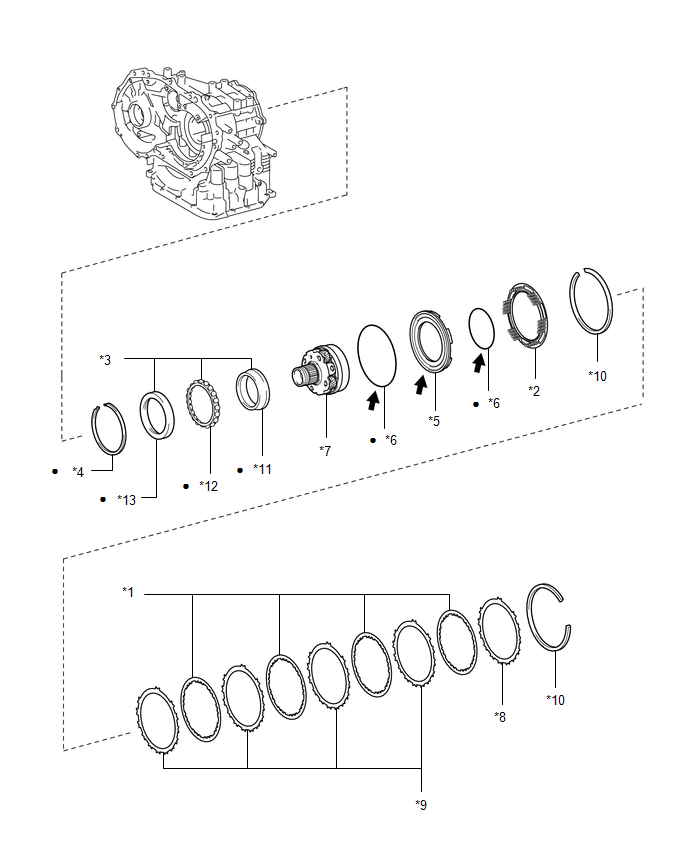

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (15 Of 15)
GTY544078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 1ST AND REVERSE BRAKE DISC *2 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
*3 COUNTER DRIVE GEAR BEARING LH *4 COUNTER DRIVE GEAR HOLE SNAP RING
*5 NO. 2 1ST AND REVERSE BRAKE PISTON *6 NO. 2 1ST AND REVERSE BRAKE PISTON O-RING
*7 PLANETARY GEAR ASSEMBLY *8 1ST AND REVERSE BRAKE FLANGE
*9 1ST AND REVERSE BRAKE PLATE *10 SNAP RING
*11 COUNTER DRIVE GEAR BEARING LH (INNER RACE) *12 ANGULAR BALL
*13 COUNTER DRIVE GEAR BEARING LH (OUTER RACE) - -
• Non-reusable part ATF WS
