Replacement [08/2013 - ]: Procedure
- REPLACE INTAKE VALVE GUIDE BUSH
- Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).
- Place the cylinder head sub-assembly on wooden blocks.

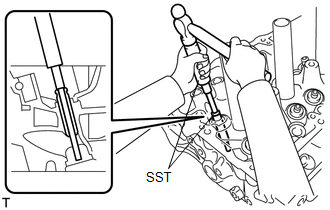

- Using SST and a hammer, tap out the intake valve guide bush.
- SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
- SST: 09201-10000

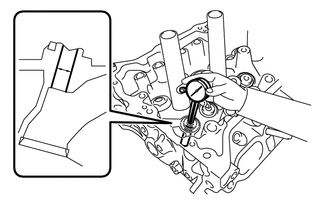

- Using a caliper gauge, measure the intake valve guide bush bore diameter of the cylinder head sub-assembly.
Standard Bush Bore Diameter
10.285 to 10.306 mm (0.405 to 0.406 in.)
Select New Guide Bush
Bush Size Bush Bore Diameter STD 10.333 to 10.344 mm (0.4068 to 0.4072 in.) O/S 0.05 10.383 to 10.394 mm (0.4088 to 0.4092 in.) If the intake valve guide bush bore diameter of the cylinder head sub-assembly is more than 10.306 mm (0.406 in.), machine the intake valve guide bush bore to a diameter of 10.335 to 10.356 mm (0.407 to 0.408 in.) in order to install an O/S 0.05 intake valve guide bush. If the intake valve guide bush bore diameter of the cylinder head sub-assembly is more than 10.356 mm (0.408 in.), replace the cylinder head sub-assembly.
- Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).
- Place the cylinder head sub-assembly on wooden blocks.

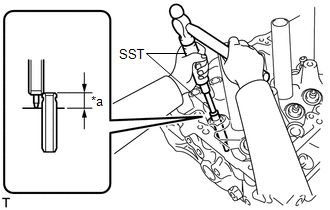

- Using SST and a hammer, tap in a new intake valve guide bush to the specified protrusion height.
*a Height - SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
Standard Protrusion Height
9.9 to 10.3 mm (0.390 to 0.406 in.)
- SST: 09201-10000
- Using a sharp 5.5 mm reamer, ream the intake valve guide bush to obtain the standard clearance between the intake valve guide bush and valve stem.
Standard Oil Clearance
0.025 to 0.060 mm (0.000984 to 0.00236 in.)
- REPLACE EXHAUST VALVE GUIDE BUSH
- Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).
- Place the cylinder head sub-assembly on wooden blocks.

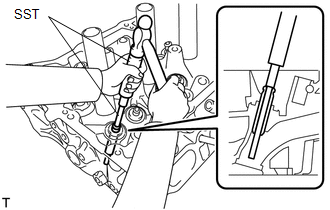

- Using SST and a hammer, tap out the exhaust valve guide bush.
- SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
- SST: 09201-10000
- Using a caliper gauge, measure the exhaust valve guide bush bore diameter of the cylinder head sub-assembly.
Standard Bush Bore Diameter
10.285 to 10.306 mm (0.405 to 0.406 in.)
Select New Guide Bush
Bush Size Bush Bore Diameter STD 10.333 to 10.344 mm (0.4068 to 0.4072 in.) O/S 0.05 10.383 to 10.394 mm (0.4088 to 0.4092 in.) If the exhaust valve guide bush bore diameter of the cylinder head sub-assembly is more than 10.306 mm (0.406 in.), machine the exhaust valve guide bush bore to a diameter of 10.335 to 10.356 mm (0.407 to 0.408 in.) in order to install an O/S 0.05 exhaust valve guide bush. If the exhaust valve guide bush bore diameter of the cylinder head sub-assembly is more than 10.356 mm (0.408 in.), replace the cylinder head sub-assembly.
- Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).
- Place the cylinder head sub-assembly on wooden blocks.

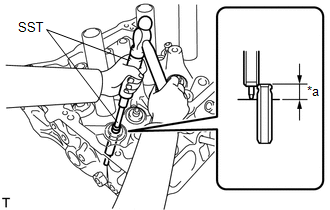

- Using SST and a hammer, tap in a new exhaust valve guide bush to the specified protrusion height.
*a Height - SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
Standard Protrusion Height
11.15 to 11.55 mm (0.439 to 0.455 in.)
- SST: 09201-10000
- Using a sharp 5.5 mm reamer, ream the exhaust valve guide bush to obtain the standard oil clearance between the exhaust valve guide bush and valve stem.
Standard Oil Clearance
0.030 to 0.065 mm (0.00118 to 0.00256 in.)
- REPLACE RING PIN NOTE:
It is not necessary to remove a ring pin unless it is being replaced.

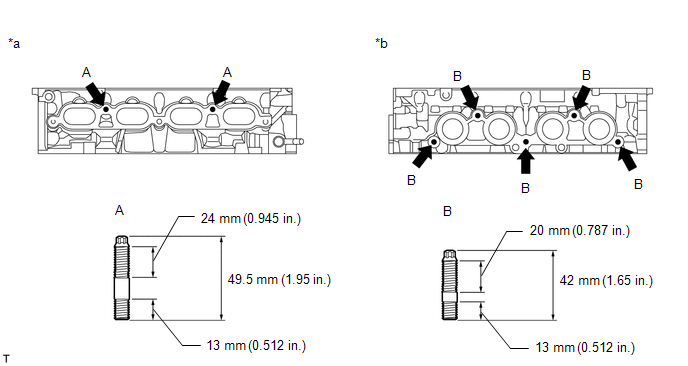

- REPLACE STUD BOLT NOTE:
If a stud bolt is deformed or its threads are damaged, replace it.
