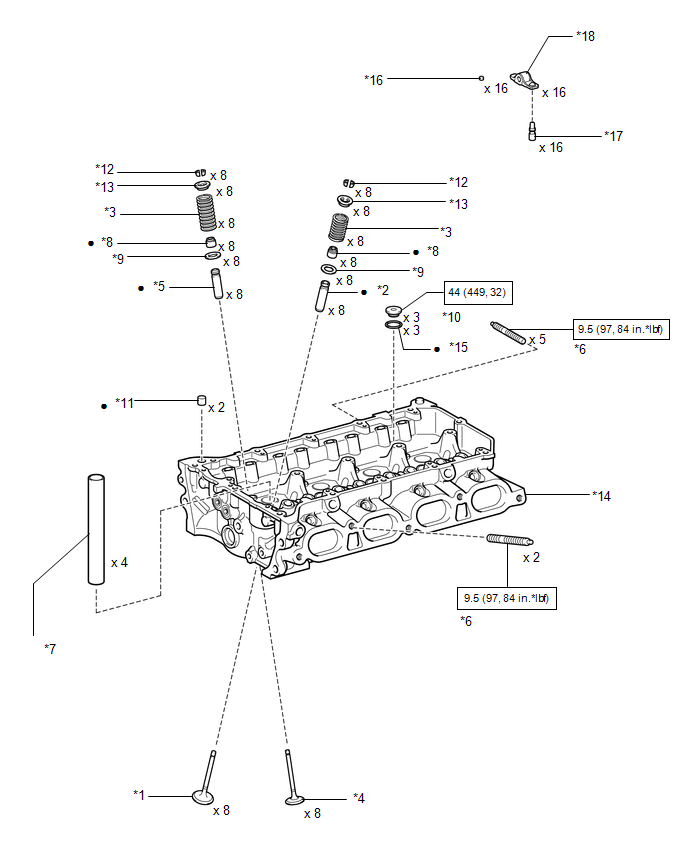

Components [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | INTAKE VALVE | *2 | INTAKE VALVE GUIDE BUSH |
| *3 | INNER COMPRESSION SPRING | *4 | EXHAUST VALVE |
| *5 | EXHAUST VALVE GUIDE BUSH | *6 | STUD BOLT |
| *7 | SPARK PLUG TUBE | *8 | VALVE STEM OIL SEAL |
| *9 | VALVE SPRING SEAT | *10 | NO. 2 STRAIGHT SCREW PLUG |
| *11 | RING PIN | *12 | VALVE SPRING RETAINER LOCK |
| *13 | VALVE SPRING RETAINER | *14 | CYLINDER HEAD |
| *15 | GASKET | *16 | VALVE STEM CAP |
| *17 | VALVE LASH ADJUSTER ASSEMBLY | *18 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
