Section 38 (Continuously Variable Transaxle - Diagnostic Codes (3 Of 3) & Circuit Tests (Model Code: ZRE172))
>>
Continuously Variable Transaxle System
>>
Circuit Tests
>>
Shift Paddle Switch Circuit [08/2016 - ]
>>
Wiring Diagram

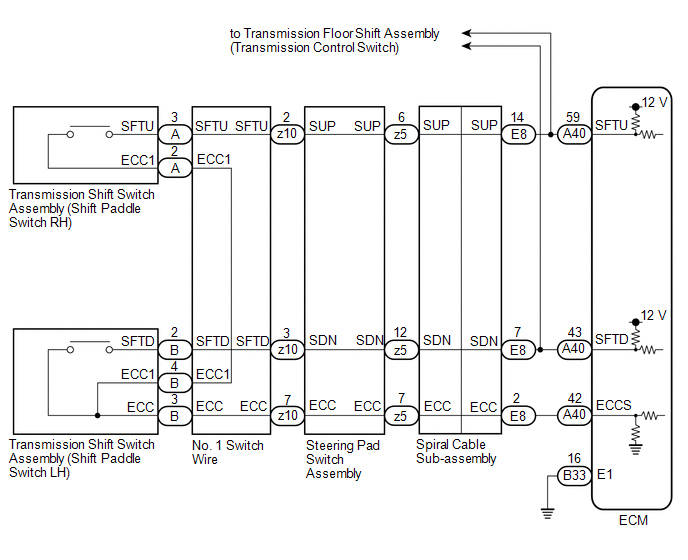

Shift Paddle Switch Circuit [08/2016 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
