Section 36 (Continuously Variable Transaxle - Diagnostic Codes (1 Of 3) (Model Code: ZRE172))
>>
Continuously Variable Transaxle System
>>
DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [08/2013 - 08/2016]
>>

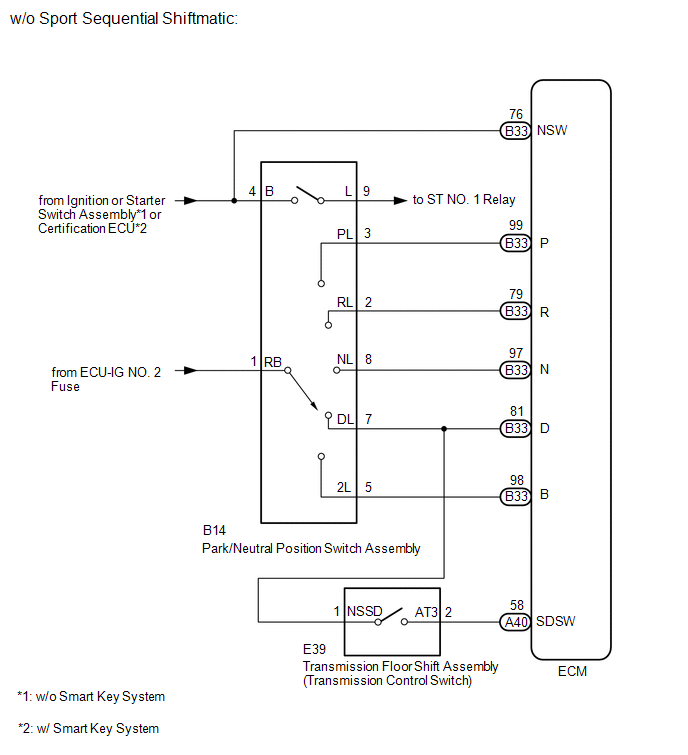

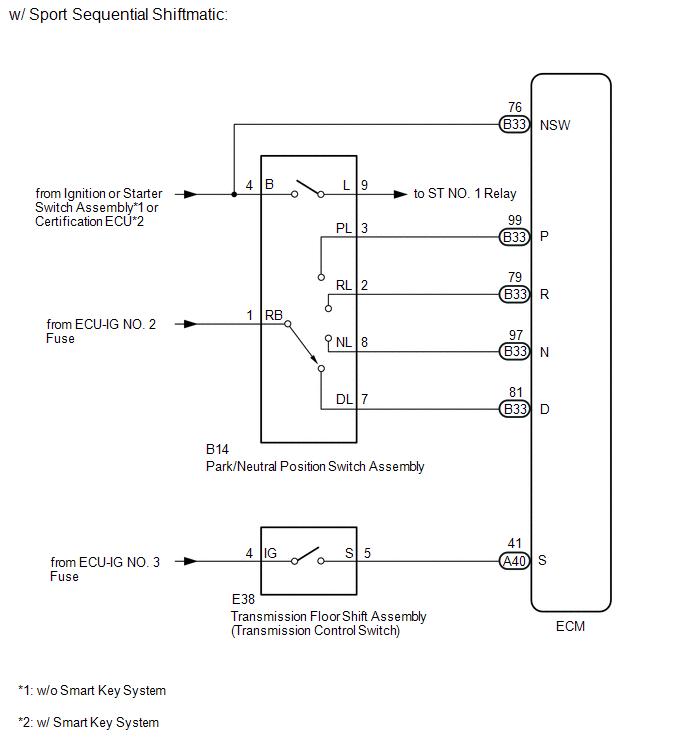

Wiring Diagram
DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [08/2013 - 08/2016]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
