DTC P0617: Starter Relay Circuit High [08/2013 - 08/2016]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

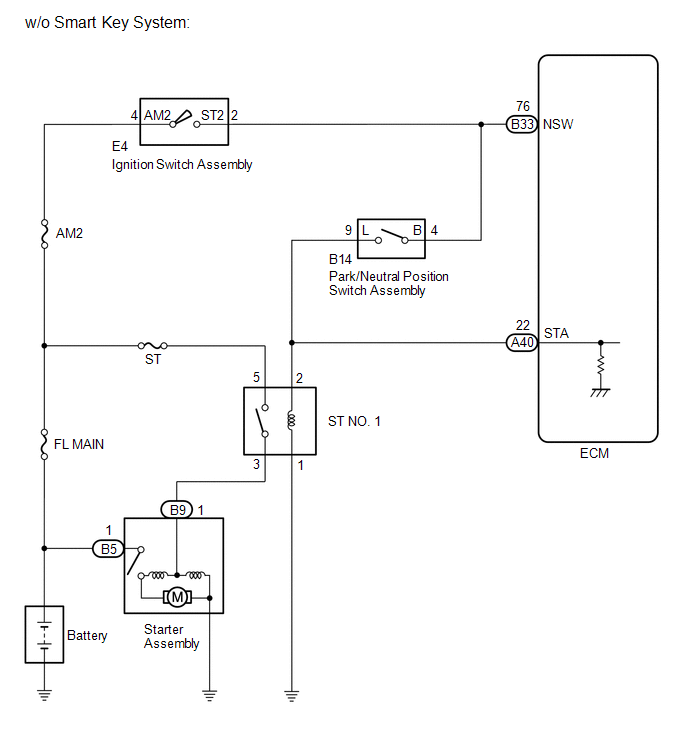

GTY480254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

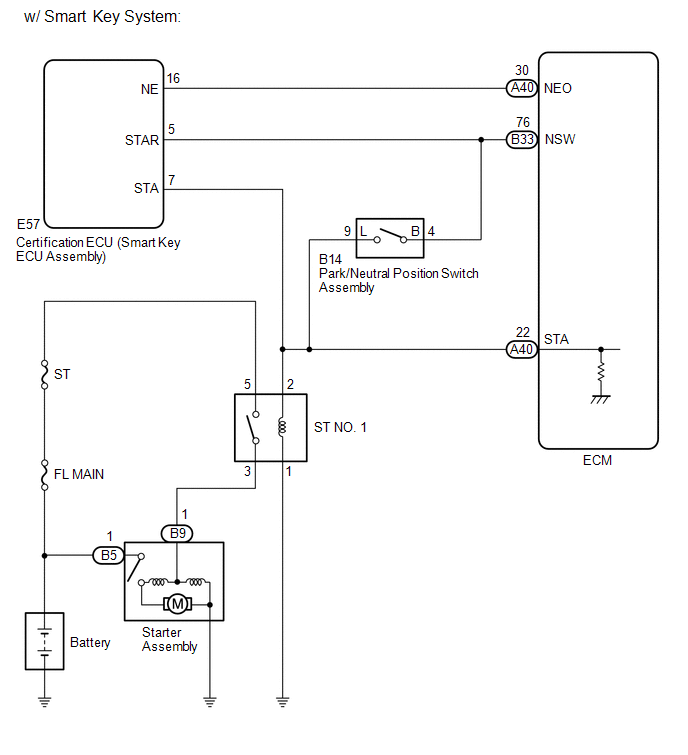

GTY444210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
