Parts Location [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

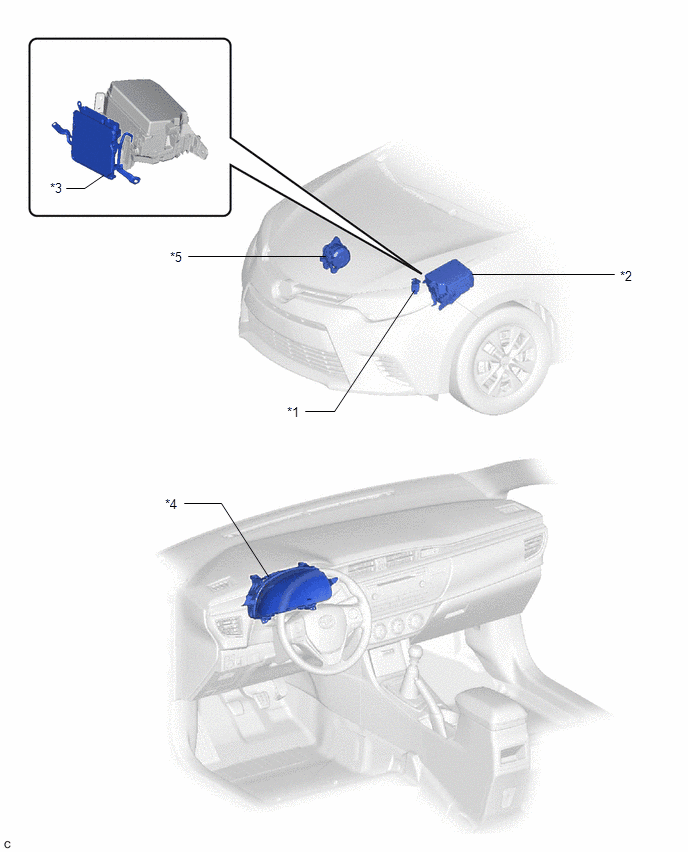

| *1 |
GENERATOR CONTROL ECU ASSEMBLY |
*2 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- WIP-S FUSE
- ALT FUSE |
| *3 |
ECM |
*4 |
COMBINATION METER ASSEMBLY |
| *5 |
GENERATOR ASSEMBLY |
- |
- |
