On-Vehicle Inspection [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSPECT FOR COOLANT LEAK

WARNING:

Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

Remove the radiator cap sub-assembly.

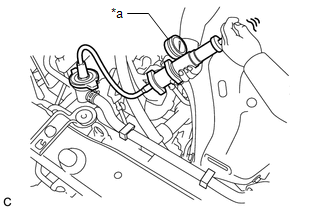

Fill the radiator assembly with engine coolant, and then install a radiator cap tester.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Radiator Cap Tester

Warm up the engine.
Pump the radiator cap tester to 118 kPa (1.2 kgf/cm² , 17 psi), and then check that the pressure does not drop.
- If the pressure drops, check the hoses, radiator assembly and engine water pump assembly for leaks.
- If there are no signs of external engine coolant leaks, check the heater core, cylinder block and cylinder head.
Remove the radiator cap tester.
Install the radiator cap sub-assembly.

INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK

Check that the engine coolant level is between the low line and full line when the engine is cold.

*a	Full Line
*b	Low Line

If the engine coolant level is low, check for leaks and add engine coolant to the full line.

NOTE:

Do not substitute plain water for engine coolant.

INSPECT ENGINE COOLANT QUALITY
WARNING:
Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
1. Remove the radiator cap sub-assembly.
2. Check if there are any excessive deposits of rust or scale around the reserve tank cap and radiator reserve tank filler hole. Also, the engine coolant should be free of oil.
  If excessively dirty, replace the engine coolant.
3. Install the radiator cap sub-assembly.
