Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

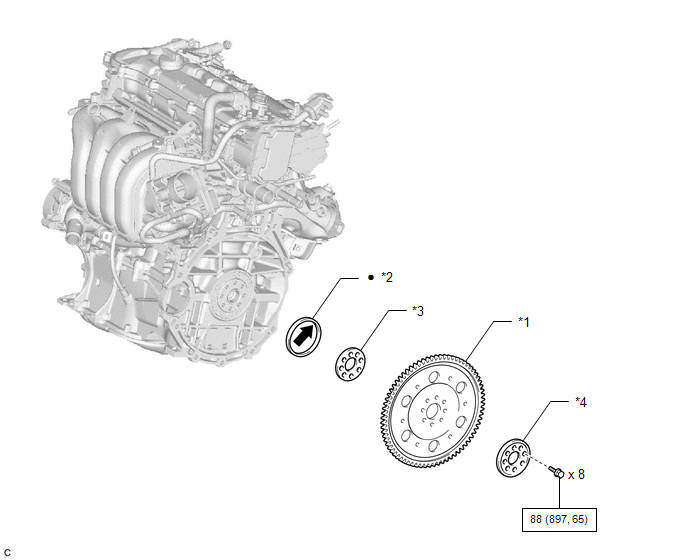

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications
GTY436280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY *2 REAR ENGINE OIL SEAL
*3 FRONT DRIVE PLATE SPACER *4 REAR DRIVE PLATE SPACER
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease * Precoated part
