Removal [08/2013 - 04/2014]: Procedure

See step  2

See step  11

See step  4

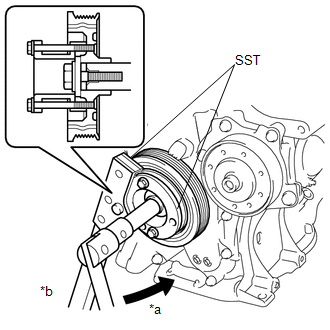

1. Using SST, hold the crankshaft pulley in place and loosen the crankshaft pulley set bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

   for 86 mm (3.39 in.) Bolt Pitch Type:

   • SST: 09213-58014
     1. 91551-80840
   • SST: 09330-00021

   for 64 mm (2.52 in.) Bolt Pitch Type:

   • SST: 09213-5401509330-00021

   HINT:

   For the 64 mm (2.52 in.) bolt pitch type, the part number of the installation bolt for SST (crankshaft pulley holding tool) is 91551-00850 (quantity: 2).

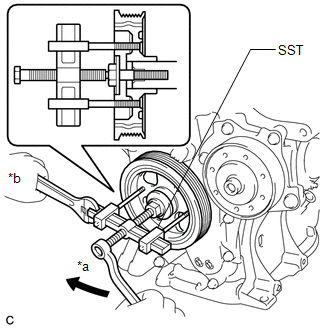

2. Using SST, remove the crankshaft pulley and crankshaft pulley set bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05021

   HINT:

   If necessary, remove the crankshaft pulley and crankshaft pulley set bolt using SST.

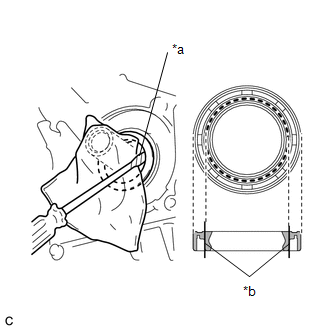

1. Using a knife, cut off the lip of the timing chain cover oil seal.
2. Using a screwdriver, pry out the timing chain cover oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   *b	Cut Position

   NOTE:

   After removal, check the crankshaft and timing chain cover sub-assembly for damage. If damaged, smooth the surface with 400-grit sandpaper.

   HINT:

   Tape the screwdriver tip before use.
