Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

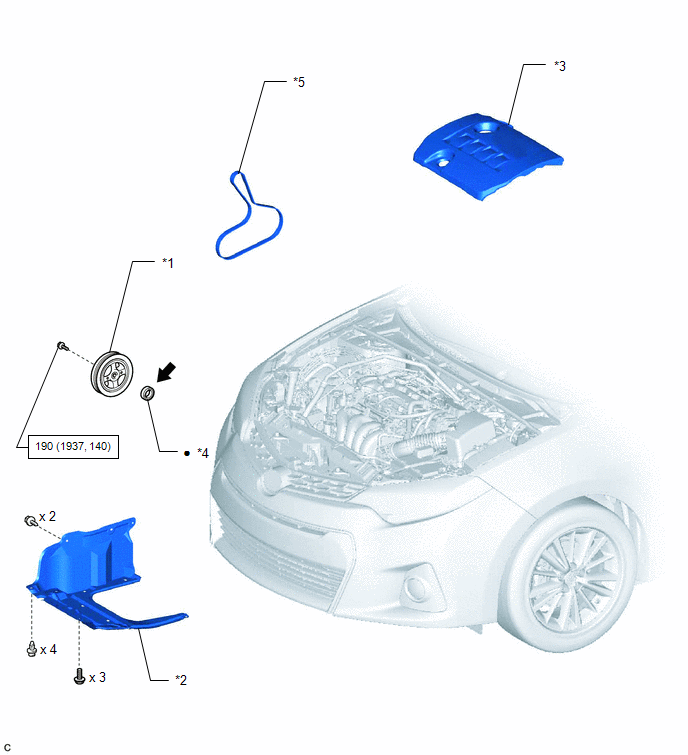

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications
GTY450607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT PULLEY *2 ENGINE UNDER COVER RH
*3 NO. 2 CYLINDER HEAD COVER *4 TIMING CHAIN COVER OIL SEAL
*5 V-RIBBED BELT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease - -
