Components [08/2016 - 08/2017]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 VACUUM SWITCHING VALVE ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
Do not apply lubricants to the threads |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
Type A |
*B |
Type B |
| *1 |
DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY |
*2 |
EXHAUST MANIFOLD |
| *3 |
FUEL DELIVERY PIPE SUB-ASSEMBLY |
*4 |
FUEL INJECTOR ASSEMBLY |
| *5 |
FUEL TUBE SUB-ASSEMBLY |
*6 |
MANIFOLD STAY |
| *7 |
NO. 1 DELIVERY PIPE SPACER |
*8 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
| *9 |
NO. 2 FUEL PIPE CLAMP |
*10 |
O-RING |
| *11 |
INJECTOR VIBRATION INSULATOR |
*12 |
EXHAUST MANIFOLD TO HEAD GASKET |
| *a |
Diameter 18 mm (0.71 in.) |
*b |
Diameter 17 mm (0.67 in.) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*2 |
ENGINE OIL TEMPERATURE SENSOR |
| *3 |
IGNITION COIL ASSEMBLY |
*4 |
NO. 1 VACUUM PUMP BRACKET |
| *5 |
NO. 1 WATER BY-PASS PIPE |
*6 |
NO. 3 WATER BY-PASS HOSE |
| *7 |
VENTILATION HOSE |
*8 |
WATER BY-PASS HOSE |
| *9 |
WATER INLET HOSE |
*10 |
ENGINE OIL LEVEL DIPSTICK |
| *11 |
GASKET |
*12 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT POSITION SENSOR (NO. 1 CRANK POSITION SENSOR) |
*2 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side) |
| *3 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side) |
*4 |
CYLINDER HEAD COVER GASKET |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*6 |
ENGINE COVER JOINT |
| *7 |
OIL FILLER CAP GASKET |
*8 |
OIL FILLER CAP SUB-ASSEMBLY |
| *9 |
SPARK PLUG |
*10 |
SPARK PLUG TUBE GASKET |
| *11 |
STUD BOLT |
*12 |
VALVEMATIC SHAFT SENSOR (NO. 1 CRANK POSITION SENSOR) |
| *13 |
SEAL WASHER |
*14 |
GASKET |
| *15 |
O-RING |
*16 |
BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Oil Filter Element Kit Type |
- |
- |
| *1 |
CRANKSHAFT PULLEY |
*2 |
ENGINE OIL PRESSURE SWITCH ASSEMBLY |
| *3 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*4 |
OIL FILTER CAP ASSEMBLY |
| *5 |
THERMOSTAT |
*6 |
TIMING CHAIN COVER OIL SEAL |
| *7 |
TIMING CHAIN COVER SUB-ASSEMBLY |
*8 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *9 |
WATER INLET |
*10 |
WATER INLET HOUSING |
| *11 |
WATER INLET HOUSING STUD BOLT |
*12 |
ENGINE MOUNTING BRACKET RH |
| *13 |
ENGINE WATER PUMP ASSEMBLY |
*14 |
OIL FILTER ELEMENT |
| *15 |
OIL FILTER BRACKET |
*16 |
BRACKET |
| *17 |
GASKET |
*18 |
O-RING |
| *19 |
SEAL WASHER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
* |
Precoated part |
|
Do not apply lubricants to the threads |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Oil Filter Sub-assembly Type |
- |
- |
| *1 |
CRANKSHAFT PULLEY |
*2 |
ENGINE OIL PRESSURE SWITCH ASSEMBLY |
| *3 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*4 |
OIL FILTER SUB-ASSEMBLY |
| *5 |
THERMOSTAT |
*6 |
TIMING CHAIN COVER OIL SEAL |
| *7 |
TIMING CHAIN COVER SUB-ASSEMBLY |
*8 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *9 |
WATER INLET |
*10 |
WATER INLET HOUSING |
| *11 |
WATER INLET HOUSING STUD BOLT |
*12 |
ENGINE MOUNTING BRACKET RH |
| *13 |
ENGINE WATER PUMP ASSEMBLY |
*14 |
OIL FILTER UNION |
| *15 |
OIL FILTER BRACKET |
*16 |
BRACKET |
| *17 |
GASKET |
*18 |
O-RING |
| *19 |
SEAL WASHER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
* |
Precoated part |
|
Do not apply lubricants to the threads |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CHAIN SUB-ASSEMBLY |
*2 |
CHAIN TENSIONER SLIPPER |
| *3 |
CRANKSHAFT POSITION SENSOR |
*4 |
CRANKSHAFT TIMING GEAR KEY |
| *5 |
CRANKSHAFT TIMING SPROCKET |
*6 |
NO. 1 CHAIN VIBRATION DAMPER |
| *7 |
NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY |
| *9 |
OIL PUMP DRIVE GEAR |
*10 |
OIL PUMP DRIVE SHAFT GEAR |
| *11 |
CHAIN DAMPER SPRING |
*12 |
CHAIN TENSIONER PLATE |
| *13 |
O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
*2 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *3 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*4 |
CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY |
| *5 |
CYLINDER HEAD SUB-ASSEMBLY |
*6 |
CYLINDER HEAD GASKET |
| *7 |
ENGINE COOLANT TEMPERATURE SENSOR |
*8 |
VALVE ROCKER ARM LOST MOTION DAMPER SUB-ASSEMBLY |
| *9 |
WIRE HARNESS CLAMP BRACKET |
*10 |
VALVE LIFT CONTROL ACTUATOR CONNECTOR |
| *11 |
VALVE LIFT CONTROL ACTUATOR CLIP |
*12 |
PLATE WASHER |
| *13 |
STRAIGHT PIN |
*14 |
O-RING |
| *15 |
GASKET |
*16 |
CAMSHAFT HOUSING STUD BOLT |
| *17 |
CAMSHAFT HOUSING STRAIGHT PIN |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| *T1 |
1st: 49 (500, 36)
2nd: Turn 90°
3rd: Turn 45° |
- |
- |

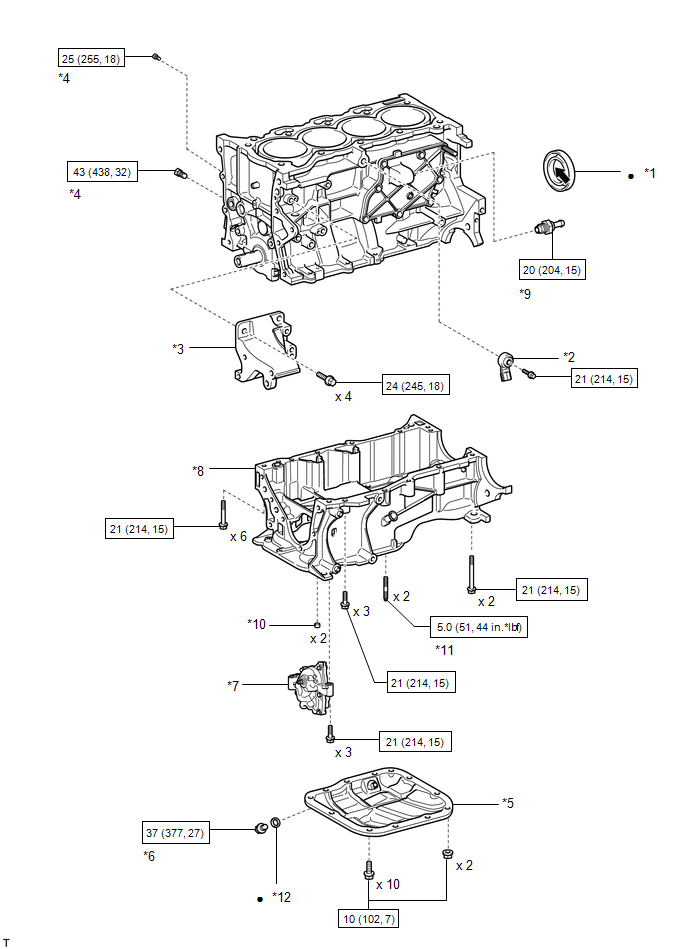

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
REAR ENGINE OIL SEAL |
*2 |
KNOCK CONTROL SENSOR |
| *3 |
NO. 1 GENERATOR BRACKET |
*4 |
NO. 1 TAPER SCREW PLUG |
| *5 |
NO. 2 OIL PAN SUB-ASSEMBLY |
*6 |
OIL PAN DRAIN PLUG |
| *7 |
OIL PUMP ASSEMBLY |
*8 |
STIFFENING CRANKCASE ASSEMBLY |
| *9 |
VENTILATION VALVE SUB-ASSEMBLY |
*10 |
STIFFENING CRANKCASE RING PIN |
| *11 |
STIFFENING CRANKCASE STUD BOLT |
*12 |
GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
* |
Precoated part |
