Components [08/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

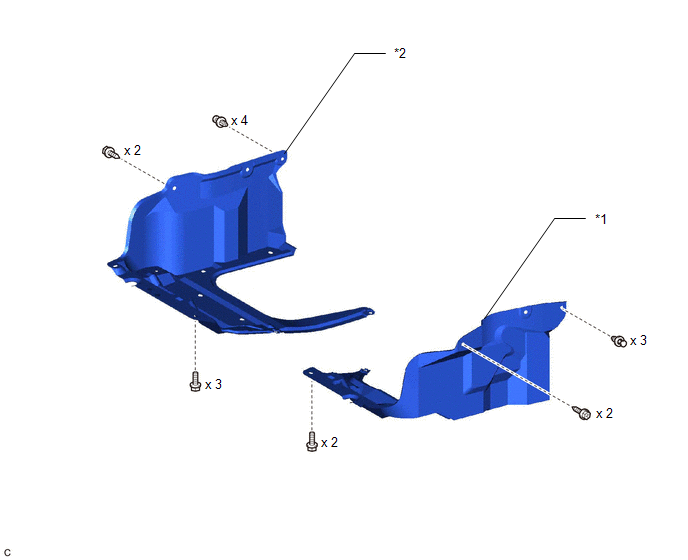

Fig 1: Engine Assembly & Engine Under Cover Replacement Components (1 Of 7)
GTY447699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE UNDER COVER LH *2 ENGINE UNDER COVER RH

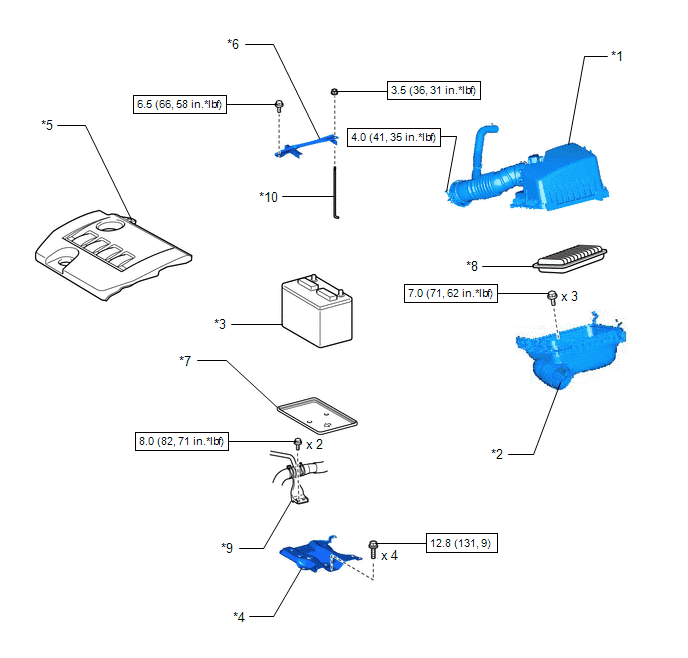

Fig 1: Engine Assembly Replacement Components With Torque Specifications (2 Of 7)
GTY455649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 AIR CLEANER CASE SUB-ASSEMBLY
*3 BATTERY *4 BATTERY CARRIER
*5 NO. 2 CYLINDER HEAD COVER *6 BATTERY CLAMP SUB-ASSEMBLY
*7 BATTERY TRAY *8 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*9 RADIATOR PIPE *10 BATTERY CLAMP BOLT
N*m (kgf*cm, ft.*lbf): Specified torque - -

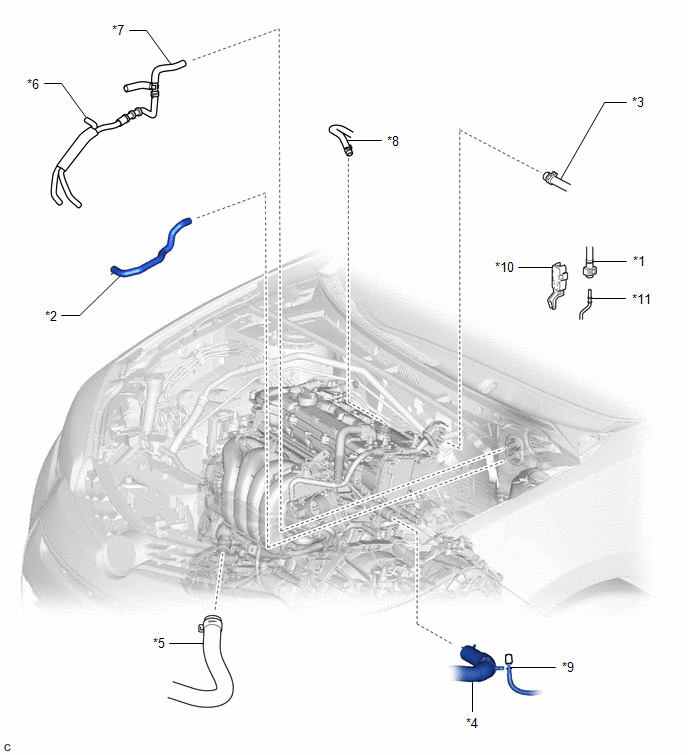

Fig 1: Engine Assembly Replacement Components (3 Of 7)
GTY433459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL TUBE SUB-ASSEMBLY *2 HEATER WATER INLET HOSE
*3 NO. 1 FUEL VAPOR FEED HOSE *4 NO. 1 RADIATOR HOSE
*5 NO. 2 RADIATOR HOSE *6 WATER BY-PASS HOSE ASSEMBLY
*7 HEATER WATER OUTLET HOSE *8 UNION TO CONNECTOR TUBE HOSE
*9 BREATHER PLUG HOSE *10 NO. 1 FUEL PIPE CLAMP
*11 FUEL PIPE - -

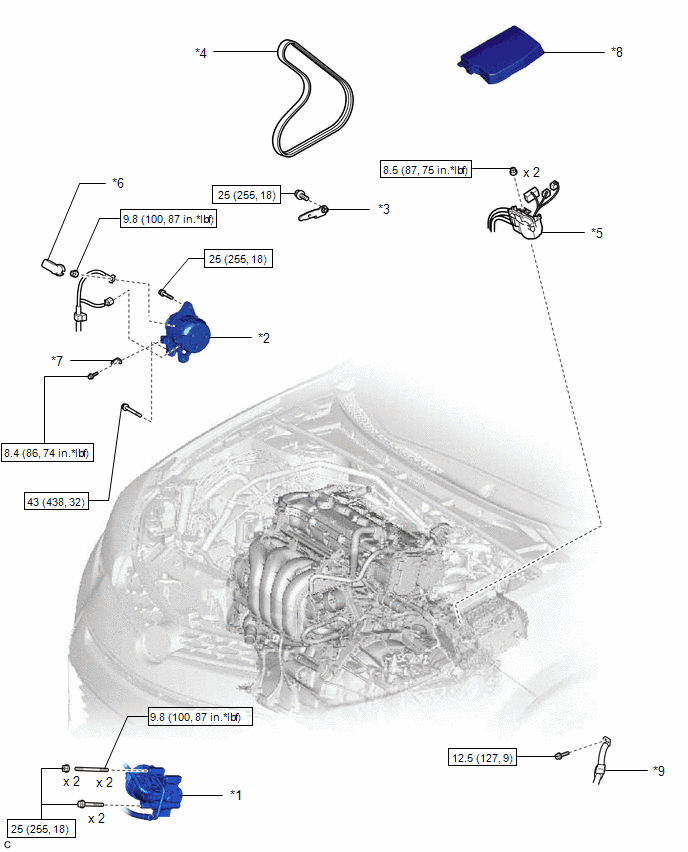

Fig 1: Engine Assembly Replacement Components With Torque Specifications (4 Of 7)
GTY439020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COMPRESSOR ASSEMBLY WITH PULLEY *2 GENERATOR ASSEMBLY
*3 NO. 2 GENERATOR BRACKET *4 V-RIBBED BELT
*5 WIRE HARNESS *6 TERMINAL CAP
*7 WIRE HARNESS CLAMP BRACKET *8 NO. 1 ENGINE ROOM RELAY BLOCK COVER
*9 NO. 3 ENGINE WIRE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

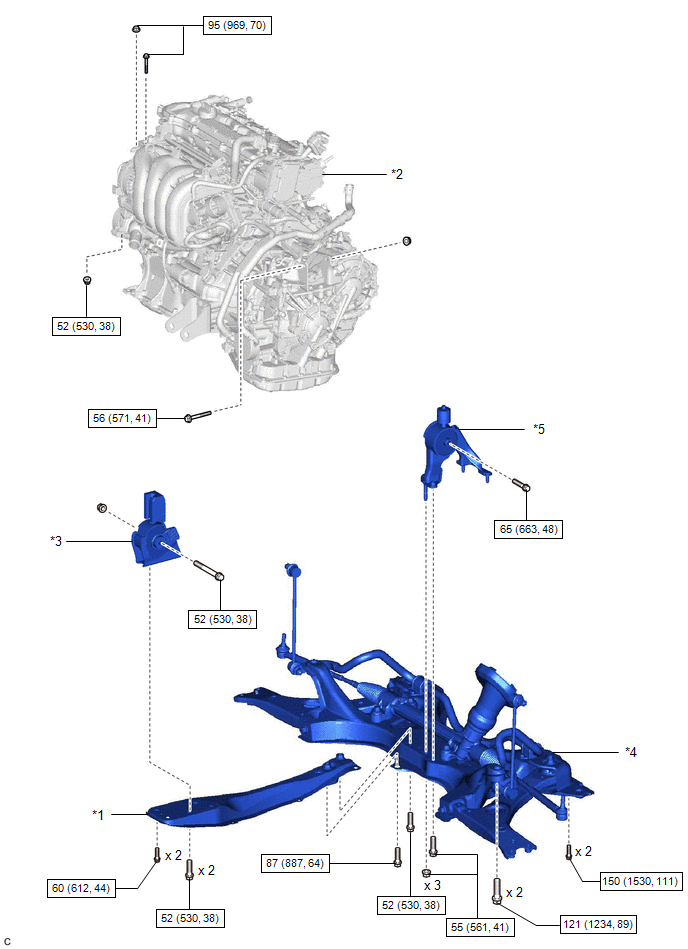

Fig 1: Engine Assembly Replacement Components With Torque Specifications (5 Of 7)
GTY454171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY *2 ENGINE ASSEMBLY WITH TRANSAXLE
*3 FRONT ENGINE MOUNTING INSULATOR *4 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
*5 REAR ENGINE MOUNTING INSULATOR - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

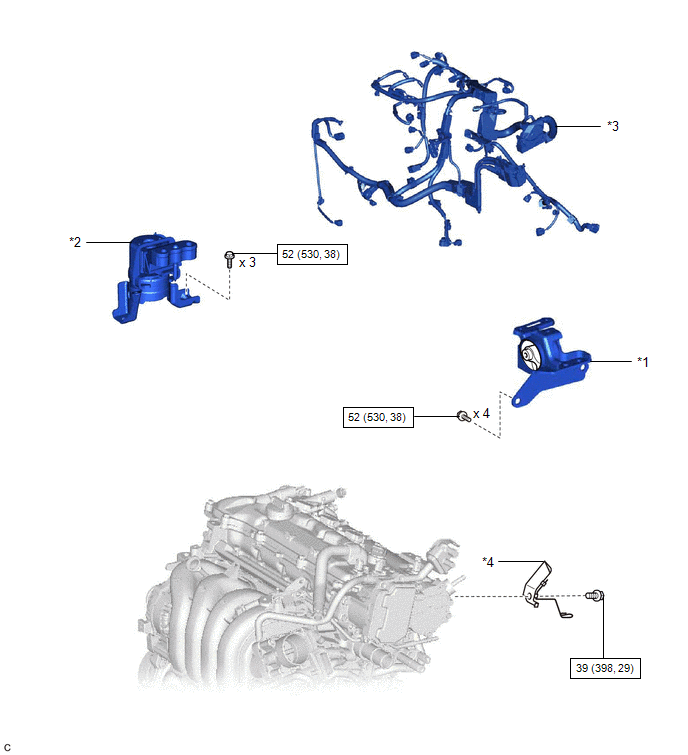

Fig 1: Engine Assembly Replacement Components With Torque Specifications (6 Of 7)
GTY447466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE MOUNTING INSULATOR LH *2 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
*3 ENGINE WIRE *4 WIRE HARNESS CLAMP BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -

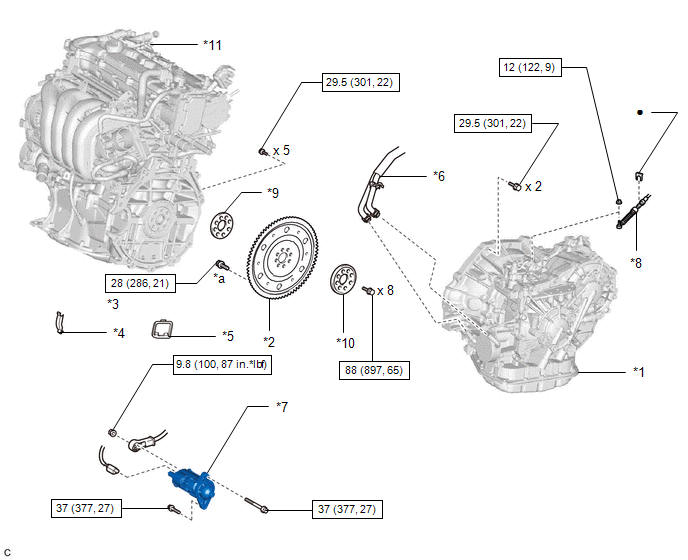

Fig 1: Engine Assembly Replacement Components With Torque Specifications (7 Of 7)
GTY425968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY *2 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*3 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT *4 FLYWHEEL HOUSING SIDE COVER
*5 FLYWHEEL HOUSING UNDER COVER *6 NO. 5 WATER BY-PASS HOSE
*7 STARTER ASSEMBLY *8 TRANSMISSION CONTROL CABLE ASSEMBLY
*9 FRONT DRIVE PLATE SPACER *10 REAR DRIVE PLATE SPACER
*11 ENGINE ASSEMBLY - -
*a BLACK: x 1
SILVER: x 5		 - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
* Precoated part - -
